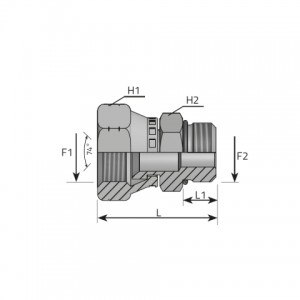

Taisni adapteri ar kustīgu JIC iekšējo un UNF ārējo vītni. (AFGJ..MU)

Brand : Vitillo


Kods	F1 inch	F2 inch	H1 mm	H2 mm	L mm	L1 mm	Spiediens	Piezīme
AFGJ04MU04	7/16	7/16	15	14	34.50	9.10	310 bar 4495 psi
AFGJ04MU05	7/16	1/2	15	17	34.50	9.10	275 bar 3988 psi
AFGJ04MU06	7/16	9/16	15	17	36.50	10.00	275 bar 3988 psi
AFGJ05MU05	1/2	1/2	17	17	36.00	9.10	275 bar 3988 psi
AFGJ06MU06	9/16	9/16	19	17	38.80	10.00	275 bar 3988 psi
AFGJ06MU08	9/16	3/4	19	22	40.80	11.10	275 bar 3988 psi
AFGJ08MU08	3/4	3/4	24	22	43.10	11.10	275 bar 3988 psi
AFGJ08MU10	3/4	7/8	24	27	46.10	12.70	210 bar 3045 psi
AFGJ08MU12	3/4	1 1/16	24	32	50.10	15.10	210 bar 3045 psi
AFGJ10MU08	7/8	3/4	27	22	47.10	11.10	210 bar 3045 psi
AFGJ10MU10	7/8	7/8	27	27	50.10	12.70	210 bar 3045 psi
AFGJ10MU12	7/8	1 1/16	27	32	54.10	15.10	210 bar 3045 psi
AFGJ12MU08	1 1/16	3/4	32	27	48.70	11.10	210 bar 3045 psi	*
AFGJ12MU10	1 1/16	7/8	32	27	50.20	12.70	210 bar 3045 psi	*
AFGJ12MU12	1 1/16	1 1/16	32	32	54.10	15.10	210 bar 3045 psi	*
AFGJ12MU16	1 1/16	1 5/16	32	41	54.70	15.10	170 bar 2465 psi	*
AFGJ16MU12	1 5/16	1 1/16	41	32	57.90	15.10	170 bar 2465 psi	*
AFGJ16MU16	1 5/16	1 5/16	41	41	54.70	15.10	170 bar 2465 psi	*
AFGJ16MU20	1 5/16	1 5/8	41	50	60.40	15.10	140 bar 2030 psi	*
AFGJ20MU20	1 5/8	1 5/8	50	50	60.80	15.10	140 bar 2030 psi	*
AFGJ24MU24	1 7/8	1 7/8	55	55	69.80	15.10	105 bar 1523 psi	*
