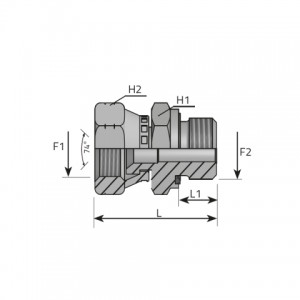

Taisni adapteri ar kustīgu JIC iekšējo un BSP (collīgo) ārējo vītni. (AFGJ..MG..R)

Brand : Vitillo


Kods	F1 inch	F2 inch	H1 mm	H2 mm	L mm	L1 mm	Spiediens	Piezīme
AFGJ04MG02R	7/16	1/8	14	15	34.00	8.00	310 bar 4495 psi
AFGJ04MG04R	7/16	1/4	19	15	37.50	12.00	275 bar 3988 psi
AFGJ04MG06R	7/16	3/8	22	15	39.50	12.00	275 bar 3988 psi
AFGJ05MG02R	1/2	1/8	14	17	35.50	8.00	275 bar 3988 psi
AFGJ05MG04R	1/2	1/4	19	17	39.00	12.00	275 bar 3988 psi
AFGJ05MG06R	1/2	3/8	22	17	41.00	12.00	210 bar 3045 psi
AFGJ06MG04R	9/16	1/4	19	19	39.80	12.00	275 bar 3988 psi
AFGJ06MG06R	9/16	3/8	22	19	41.80	12.00	210 bar 3045 psi
AFGJ06MG08R	9/16	1/2	27	19	45.30	14.00	210 bar 3045 psi
AFGJ08MG04R	3/4	1/4	19	24	42.10	12.00	275 bar 3988 psi
AFGJ08MG06R	3/4	3/8	22	24	44.10	12.00	275 bar 3988 psi
AFGJ08MG08R	3/4	1/2	27	24	47.60	14.00	210 bar 3045 psi
AFGJ10MG06R	7/8	3/8	22	27	48.10	12.00	210 bar 3045 psi
AFGJ10MG08R	7/8	1/2	27	27	51.60	14.00	210 bar 3045 psi
AFGJ10MG12R	7/8	3/4	32	27	55.10	16.00	210 bar 3045 psi
AFGJ12MG08R	1 1/16	1/2	27	32	51.70	14.00	210 bar 3045 psi	*
AFGJ12MG12R	1 1/16	3/4	32	32	55.20	16.00	210 bar 3045 psi	*
AFGJ12MG16R	1 1/16	1	41	32	58.70	18.00	170 bar 2465 psi	*
AFGJ16MG12R	1 5/16	3/4	32	41	58.90	16.00	170 bar 2465 psi	*
AFGJ16MG16R	1 5/16	1	41	41	62.00	18.00	170 bar 2465 psi	*
AFGJ16MG20R	1 5/16	1 1/4	50	41	66.90	20.00	170 bar 2465 psi	*
AFGJ20MG16R	1 5/8	1	41	50	62.80	18.00	140 bar 2030 psi	*
AFGJ20MG20R	1 5/8	1 1/4	50	50	67.30	20.00	140 bar 2030 psi	*
AFGJ24MG20R	1 7/8	1 1/4	50	55	74.30	20.00	105 bar 1523 psi	*
AFGJ24MG24R	1 7/8	1 1/2	55	55	77.50	26.00	105 bar 1523 psi	*
