Taisni adapteri ar kustīgu JIC iekšējo un 60° metrisku ārējo vītni. (AFGJ..MM)

Brand : Vitillo

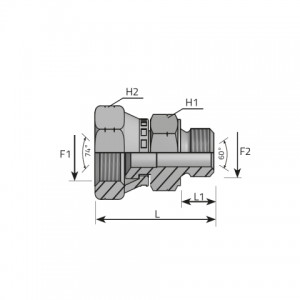

Kods	F1 inch	F2 mm	F2 Pitch mm	H1 mm	H2 mm	L mm	L1 mm	Spiediens	Piezīme
AFGJ04MM10	7/16	M 10.0	X 1.00	14	15	34.50	9.00	310 bar 4495 psi
AFGJ04MM12	7/16	M 12.0	X 1.50	17	15	36.50	11.00	275 bar 3988 psi
AFGJ05MM10	1/2	M 10.0	X 1.00	14	17	36.50	9.00	275 bar 3988 psi
AFGJ05MM12	1/2	M 12.0	X 1.50	17	17	39.00	11.00	275 bar 3988 psi
AFGJ05MM14	1/2	M 14.0	X 1.50	19	17	40.00	11.00	275 bar 3988 psi
AFGJ06MM14	9/16	M 14.0	X 1.50	19	19	41.00	11.00	275 bar 3988 psi
AFGJ06MM16	9/16	M 16.0	X 1.50	22	19	42.50	12.50	210 bar 3045 psi
AFGJ08MM16	3/4	M 16.0	X 1.50	22	24	44.00	12.50	275 bar 3988 psi
AFGJ08MM18	3/4	M 18.0	X 1.50	24	24	45.50	13.50	275 bar 3988 psi
AFGJ10MM18	7/8	M 18.0	X 1.50	24	27	48.50	13.50	210 bar 3045 psi
AFGJ10MM20	7/8	M 20.0	X 1.50	27	27	51.00	15.00	210 bar 3045 psi
AFGJ10MM22	7/8	M 22.0	X 1.50	27	27	51.00	15.00	210 bar 3045 psi
AFGJ12MM22	1 1/16	M 22.0	X 1.50	27	32	53.50	15.00	210 bar 3045 psi	*
AFGJ12MM27	1 1/16	M 27.0	X 2.00	32	32	57.50	18.50	210 bar 3045 psi	*
AFGJ16MM27	1 5/16	M 27.0	X 2.00	32	41	60.00	18.50	170 bar 2465 psi	*
AFGJ16MM33	1 5/16	M 33.0	X 2.00	41	41	61.00	18.50	170 bar 2465 psi	*
AFGJ20MM42	1 5/8	M 42.0	X 2.00	50	50	66.00	19.00	140 bar 2030 psi	*
AFGJ24MM48	1 7/8	M 48.0	X 2.00	55	55	76.00	22.00	105 bar 1523 psi	*
