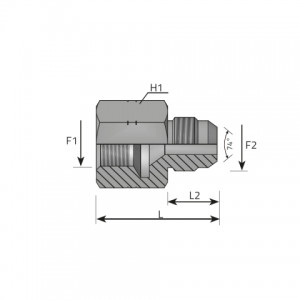

| Kods | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Spiediens | Tips |
|---|---|---|---|---|---|---|---|---|
| AFGJ06MJ04 | 9/16 | 7/16 | 19 | 33.00 | 19.00 | 14.00 | 275 bar 3988 psi |
Y |
| AFGJ06MJ05 | 9/16 | 1/2 | 19 | 31.50 | 17.50 | 14.00 | 345 bar 5003 psi |
X |
| AFGJ08MJ04 | 3/4 | 7/16 | 22 | 35.90 | 21.90 | 14.00 | 275 bar 3988 psi |
Y |
| AFGJ08MJ05 | 3/4 | 1/2 | 22 | 35.90 | 21.90 | 14.00 | 275 bar 3988 psi |
Y |
| AFGJ08MJ06 | 3/4 | 9/16 | 22 | 35.90 | 21.80 | 14.10 | 275 bar 3988 psi |
Y |
| AFGJ10MJ04 | 7/8 | 7/16 | 27 | 39.20 | 25.20 | 14.00 | 210 bar 3045 psi |
Y |
| AFGJ10MJ06 | 7/8 | 9/16 | 27 | 39.20 | 25.10 | 14.10 | 210 bar 3045 psi |
Y |
| AFGJ10MJ08 | 7/8 | 3/4 | 27 | 41.00 | 24.30 | 16.70 | 240 bar 3480 psi |
X |
| AFGJ12MJ04 | 1 1/16 | 7/16 | 32 | 40.40 | 26.40 | 14.00 | 210 bar 3045 psi |
Y |
| AFGJ12MJ06 | 1 1/16 | 9/16 | 32 | 40.40 | 26.30 | 14.10 | 210 bar 3045 psi |
Y |
| AFGJ12MJ08 | 1 1/16 | 3/4 | 32 | 42.90 | 26.20 | 16.70 | 210 bar 3045 psi |
Y |
| AFGJ12MJ10 | 1 1/16 | 7/8 | 32 | 46.50 | 27.20 | 19.30 | 240 bar 3480 psi |
Y |
| AFGJ16MJ12 | 1 5/16 | 1 1/16 | 41 | 50.80 | 28.90 | 21.90 | 170 bar 2465 psi |
Y |
| AFGJ20MJ12 | 1 5/8 | 1 1/16 | 50 | 53.30 | 31.40 | 21.90 | 140 bar 2030 psi |
Y |
| AFGJ20MJ16 | 1 5/8 | 1 5/16 | 50 | 54.80 | 31.70 | 23.10 | 140 bar 2030 psi |
Y |
| AFGJ24MJ16 | 1 7/8 | 1 5/16 | 60 | 59.40 | 36.30 | 23.10 | 105 bar 1523 psi |
Y |
