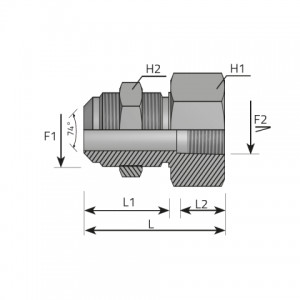

| Kods | F1 inch | F2 inch | H1 mm | H2 mm | L mm | L1 mm | L2 mm | Spiediens |
|---|---|---|---|---|---|---|---|---|
| APPMJ04FFN02 | 7/16 | 1/8 | 17 | 17 | 47.50 | 31.50 | 9.50 | 345 bar 5003 psi |
| APPMJ04FFN04 | 7/16 | 1/4 | 19 | 17 | 52.50 | 31.50 | 14.00 | 345 bar 5003 psi |
| APPMJ05FFN02 | 1/2 | 1/8 | 19 | 19 | 47.50 | 31.50 | 9.50 | 345 bar 5003 psi |
| APPMJ05FFN04 | 1/2 | 1/4 | 19 | 19 | 52.50 | 31.50 | 14.00 | 345 bar 5003 psi |
| APPMJ06FFN02 | 9/16 | 1/8 | 17 | 22 | 49.50 | 39.50 | 9.50 | 345 bar 5003 psi |
| APPMJ06FFN04 | 9/16 | 1/4 | 22 | 22 | 54.50 | 33.50 | 14.00 | 345 bar 5003 psi |
| APPMJ06FFN06 | 9/16 | 3/8 | 22 | 22 | 56.00 | 33.50 | 14.50 | 310 bar 4495 psi |
| APPMJ08FFN04 | 3/4 | 1/4 | 22 | 24 | 59.00 | 37.60 | 14.00 | 310 bar 4495 psi |
| APPMJ08FFN06 | 3/4 | 3/8 | 24 | 24 | 60.00 | 37.60 | 14.50 | 310 bar 4495 psi |
| APPMJ08FFN08 | 3/4 | 1/2 | 30 | 24 | 64.00 | 37.50 | 19.00 | 240 bar 3480 psi |
| APPMJ10FFN08 | 7/8 | 1/2 | 30 | 30 | 67.50 | 41.10 | 19.00 | 240 bar 3480 psi |
| APPMJ12FFN08 | 1 1/16 | 1/2 | 30 | 36 | 72.00 | 45.40 | 19.00 | 240 bar 3480 psi |
| APPMJ12FFN12 | 1 1/16 | 3/4 | 36 | 36 | 74.50 | 45.40 | 19.50 | 240 bar 3480 psi |
| APPMJ16FFN16 | 1 5/16 | 1 | 41 | 41 | 76.50 | 45.40 | 23.50 | 210 bar 3045 psi |
| APPMJ20FFN20 | 1 5/8 | 1 1/4 | 50 | 50 | 83.00 | 46.70 | 24.00 | 170 bar 2465 psi |
| APPMJ24FFN24 | 1 7/8 | 1 1/2 | 60 | 55 | 85.00 | 47.00 | 24.00 | 140 bar 2030 psi |
