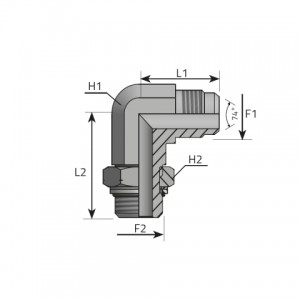

Kods | F1 inch | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L1 mm | L2 mm | Spiediens |
---|---|---|---|---|---|---|---|---|
LMJ04MOM10R | 7/16 | M 10.0 | X 1.00 | 14 | 14 | 23.50 | 30.00 | 310 bar 4495 psi |
LMJ04MOM12R | 7/16 | M 12.0 | X 1.50 | 14 | 17 | 27.00 | 32.50 | 275 bar 3988 psi |
LMJ05MOM10R | 1/2 | M 10.0 | X 1.00 | 14 | 14 | 25.00 | 27.50 | 275 bar 3988 psi |
LMJ05MOM12R | 1/2 | M 12.0 | X 1.50 | 14 | 17 | 27.00 | 32.50 | 275 bar 3988 psi |
LMJ05MOM14R | 1/2 | M 14.0 | X 1.50 | 14 | 19 | 27.00 | 35.50 | 275 bar 3988 psi |
LMJ06MOM14R | 9/16 | M 14.0 | X 1.50 | 14 | 19 | 27.50 | 35.50 | 275 bar 3988 psi |
LMJ06MOM16R | 9/16 | M 16.0 | X 1.50 | 19 | 22 | 28.50 | 39.00 | 210 bar 3045 psi |
LMJ08MOM16R | 3/4 | M 16.0 | X 1.50 | 19 | 22 | 32.00 | 39.00 | 275 bar 3988 psi |
LMJ08MOM18R | 3/4 | M 18.0 | X 1.50 | 19 | 24 | 32.00 | 41.00 | 275 bar 3988 psi |
LMJ10MOM18R | 7/8 | M 18.0 | X 1.50 | 22 | 24 | 37.00 | 41.50 | 210 bar 3045 psi |
LMJ10MOM22R | 7/8 | M 22.0 | X 1.50 | 22 | 27 | 37.00 | 43.00 | 210 bar 3045 psi |
LMJ12MOM22R | 1 1/16 | M 22.0 | X 1.50 | 27 | 27 | 42.00 | 45.50 | 210 bar 3045 psi |
LMJ12MOM27R | 1 1/16 | M 27.0 | X 2.00 | 27 | 32 | 42.00 | 51.50 | 210 bar 3045 psi |
LMJ16MOM27R | 1 5/16 | M 27.0 | X 2.00 | 33 | 32 | 46.00 | 55.00 | 170 bar 2465 psi |
LMJ16MOM33R | 1 5/16 | M 33.0 | X 2.00 | 33 | 41 | 46.00 | 55.00 | 170 bar 2465 psi |
LMJ20MOM42R | 1 5/8 | M 42.0 | X 2.00 | 41 | 50 | 52.50 | 60.00 | 140 bar 2030 psi |
