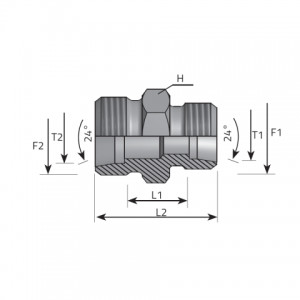

| Kods | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | T1 mm | T2 mm | Spiediens | Sērija |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AME0806L.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 14 | 11.00 | 25.00 | 8 | 6 | 315 bar 4568 psi |
L |
| AME0806S.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 17 | 18.00 | 32.00 | 8 | 6 | 630 bar 9137 psi |
S |
| AME1006L.1 | M 16.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 11.50 | 25.50 | 10 | 6 | 315 bar 4568 psi |
L |
| AME1006S.1 | M 18.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 17.50 | 32.00 | 10 | 6 | 630 bar 9137 psi |
S |
| AME1008L.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 17 | 11.50 | 25.50 | 10 | 8 | 315 bar 4568 psi |
L |
| AME1008S.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 17.50 | 32.00 | 10 | 8 | 630 bar 9137 psi |
S |
| AME1206L.1 | M 18.0 | X 1.50 | M 12.0 | X 1.50 | 19 | 12.50 | 26.50 | 12 | 6 | 315 bar 4568 psi |
L |
| AME1206S.1 | M 20.0 | X 1.50 | M 14.0 | X 1.50 | 22 | 18.50 | 33.00 | 12 | 6 | 630 bar 9137 psi |
S |
| AME1208L.1 | M 18.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 12.50 | 26.50 | 12 | 8 | 315 bar 4568 psi |
L |
| AME1208S.1 | M 20.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 18.50 | 33.00 | 12 | 8 | 630 bar 9137 psi |
S |
| AME1210L.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 13.50 | 27.50 | 12 | 10 | 315 bar 4568 psi |
L |
| AME1210S.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 22 | 18.00 | 33.00 | 12 | 10 | 630 bar 9137 psi |
S |
| AME1410S.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 20.50 | 36.00 | 14 | 10 | 630 bar 9137 psi |
S |
| AME1412S.1 | M 22.0 | X 1.50 | M 20.0 | X 1.50 | 24 | 20.50 | 36.00 | 14 | 12 | 630 bar 9137 psi |
S |
| AME1510L.1 | M 22.0 | X 1.50 | M 16.0 | X 1.50 | 24 | 14.50 | 28.50 | 15 | 10 | 315 bar 4568 psi |
L |
| AME1512L.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 14.50 | 28.50 | 15 | 12 | 315 bar 4568 psi |
L |
| AME1612S.1 | M 24.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 21.00 | 37.00 | 16 | 12 | 400 bar 5801 psi |
S |
| AME1614S.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 22.50 | 39.00 | 16 | 14 | 400 bar 5801 psi |
S |
| AME1810L.1 | M 26.0 | X 1.50 | M 16.0 | X 1.50 | 27 | 15.00 | 29.50 | 18 | 10 | 315 bar 4568 psi |
L |
| AME1812L.1 | M 26.0 | X 1.50 | M 18.0 | X 1.50 | 27 | 15.00 | 29.50 | 18 | 12 | 315 bar 4568 psi |
L |
| AME1815L.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 16.50 | 31.00 | 18 | 15 | 315 bar 4568 psi |
L |
| AME2010S.1 | M 30.0 | X 2.00 | M 18.0 | X 1.50 | 32 | 23.00 | 41.00 | 20 | 10 | 400 bar 5801 psi |
S |
| AME2012S.1 | M 30.0 | X 2.00 | M 20.0 | X 1.50 | 32 | 23.00 | 41.00 | 20 | 12 | 400 bar 5801 psi |
S |
| AME2014S.1 | M 30.0 | X 2.00 | M 22.0 | X 1.50 | 32 | 24.00 | 42.50 | 20 | 14 | 400 bar 5801 psi |
S |
| AME2016S.1 | M 30.0 | X 2.00 | M 24.0 | X 1.50 | 32 | 24.00 | 43.00 | 20 | 16 | 400 bar 5801 psi |
S |
| AME2212L.1 | M 30.0 | X 2.00 | M 18.0 | X 1.50 | 32 | 17.00 | 31.50 | 22 | 12 | 160 bar 2320 psi |
L |
| AME2215L.1 | M 30.0 | X 2.00 | M 22.0 | X 1.50 | 32 | 18.50 | 33.00 | 22 | 15 | 160 bar 2320 psi |
L |
| AME2218L.1 | M 30.0 | X 2.00 | M 26.0 | X 1.50 | 32 | 18.00 | 33.00 | 22 | 18 | 160 bar 2320 psi |
L |
| AME2516S.1 | M 36.0 | X 2.00 | M 24.0 | X 1.50 | 41 | 27.50 | 48.00 | 25 | 16 | 400 bar 5801 psi |
S |
| AME2520S.1 | M 36.0 | X 2.00 | M 30.0 | X 2.00 | 41 | 25.50 | 48.00 | 25 | 20 | 400 bar 5801 psi |
S |
| AME2818L.1 | M 36.0 | X 2.00 | M 26.0 | X 1.50 | 41 | 19.00 | 34.00 | 28 | 18 | 160 bar 2320 psi |
L |
| AME2822L.1 | M 36.0 | X 2.00 | M 30.0 | X 2.00 | 41 | 21.00 | 36.00 | 28 | 22 | 160 bar 2320 psi |
L |
| AME3020S.1 | M 42.0 | X 2.00 | M 30.0 | X 2.00 | 46 | 28.00 | 52.00 | 30 | 20 | 400 bar 5801 psi |
S |
| AME3025S.1 | M 42.0 | X 2.00 | M 36.0 | X 2.00 | 46 | 28.50 | 54.00 | 30 | 25 | 400 bar 5801 psi |
S |
| AME3522L.1 | M 45.0 | X 2.00 | M 30.0 | X 2.00 | 46 | 21.00 | 39.00 | 35 | 22 | 160 bar 2320 psi |
L |
| AME3528L.1 | M 45.0 | X 2.00 | M 36.0 | X 2.00 | 46 | 21.00 | 39.00 | 35 | 28 | 160 bar 2320 psi |
L |
| AME3825S.1 | M 52.0 | X 2.00 | M 36.0 | X 2.00 | 55 | 30.00 | 58.00 | 38 | 25 | 315 bar 4568 psi |
S |
| AME3830S.1 | M 52.0 | X 2.00 | M 42.0 | X 2.00 | 55 | 30.50 | 60.00 | 38 | 30 | 315 bar 4568 psi |
S |
