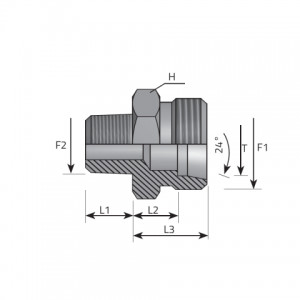

| Kods | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L1 mm | L2 mm | L3 mm | T mm | Spiediens | Sērija |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AME06LMMK10.1 | M 12.0 | X 1.50 | M 10.0 | X 1.00 | 12 | 10.00 | 7.00 | 14.00 | 6 | 315 bar 4568 psi |
L |
| AME06SMMK12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 12.00 | 12.00 | 19.00 | 6 | 630 bar 9137 psi |
S |
| AME08LMMK12.1 | M 14.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 12.00 | 8.00 | 15.00 | 8 | 315 bar 4568 psi |
L |
| AME08SMMK14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 17 | 12.00 | 13.00 | 20.00 | 8 | 630 bar 9137 psi |
S |
| AME10LMMK14.1 | M 16.0 | X 1.50 | M 14.0 | X 1.50 | 17 | 12.00 | 9.00 | 16.00 | 10 | 315 bar 4568 psi |
L |
| AME10SMMK16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 12.00 | 12.50 | 20.00 | 10 | 630 bar 9137 psi |
S |
| AME12LMMK16.1 | M 18.0 | X 1.50 | M 16.0 | X 1.50 | 19 | 12.00 | 10.00 | 17.00 | 12 | 315 bar 4568 psi |
L |
| AME12SMMK18.1 | M 20.0 | X 1.50 | M 18.0 | X 1.50 | 22 | 12.00 | 14.50 | 22.00 | 12 | 630 bar 9137 psi |
S |
| AME14SMMK20.1 | M 22.0 | X 1.50 | M 20.0 | X 1.50 | 24 | 14.00 | 16.00 | 24.00 | 14 | 630 bar 9137 psi |
S |
| AME15LMMK18.1 | M 22.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 12.00 | 11.00 | 18.00 | 15 | 315 bar 4568 psi |
L |
| AME16SMMK22.1 | M 24.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 17.50 | 26.00 | 16 | 400 bar 5801 psi |
S |
| AME18LMMK22.1 | M 26.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 14.00 | 11.50 | 19.00 | 18 | 315 bar 4568 psi |
L |
| AME20SMMK27.1 | M 30.0 | X 2.00 | M 27.0 | X 2.00 | 32 | 18.00 | 17.50 | 28.00 | 20 | 400 bar 5801 psi |
S |
| AME22LMMK26.1 | M 30.0 | X 2.00 | M 26.0 | X 1.50 | 32 | 18.00 | 13.50 | 21.00 | 22 | 160 bar 2320 psi |
L |
| AME25SMMK33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 41 | 20.00 | 18.00 | 30.00 | 25 | 400 bar 5801 psi |
S |
| AME28LMMK33.1 | M 36.0 | X 2.00 | M 33.0 | X 2.00 | 41 | 20.00 | 14.50 | 22.00 | 28 | 160 bar 2320 psi |
L |
| AME30SMMK42.1 | M 42.0 | X 2.00 | M 42.0 | X 2.00 | 46 | 21.00 | 19.50 | 33.00 | 30 | 400 bar 5801 psi |
S |
| AME35LMMK42.1 | M 45.0 | X 2.00 | M 42.0 | X 2.00 | 46 | 21.00 | 14.50 | 25.00 | 35 | 160 bar 2320 psi |
L |
| AME38SMMK48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 55 | 22.00 | 22.00 | 38.00 | 38 | 315 bar 4568 psi |
S |
| AME42LMMK48.1 | M 52.0 | X 2.00 | M 48.0 | X 2.00 | 55 | 22.00 | 16.00 | 27.00 | 42 | 160 bar 2320 psi |
L |
