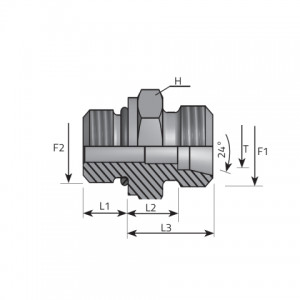

| Kods | F1 mm | F1 Pitch mm | F2 inch | H mm | L1 mm | L2 mm | L3 mm | T mm | Spiediens | Sērija |
|---|---|---|---|---|---|---|---|---|---|---|
| AME06LMU04.1 | M 12.0 | X 1.50 | 7/16 | 14 | 9.00 | 10.00 | 17.00 | 6 | 315 bar 4568 psi |
L |
| AME06SMU05.1 | M 14.0 | X 1.50 | 1/2 | 17 | 9.00 | 15.00 | 22.00 | 6 | 630 bar 9137 psi |
S |
| AME08LMU04.1 | M 14.0 | X 1.50 | 7/16 | 17 | 9.00 | 10.00 | 17.00 | 8 | 315 bar 4568 psi |
L |
| AME08LMU05.1 | M 14.0 | X 1.50 | 1/2 | 17 | 9.00 | 10.00 | 17.00 | 8 | 315 bar 4568 psi |
L |
| AME08SMU04.1 | M 16.0 | X 1.50 | 7/16 | 17 | 9.00 | 15.00 | 22.00 | 8 | 630 bar 9137 psi |
S |
| AME08SMU05.1 | M 16.0 | X 1.50 | 1/2 | 17 | 9.00 | 15.00 | 22.00 | 8 | 630 bar 9137 psi |
S |
| AME10LMU04.1 | M 16.0 | X 1.50 | 7/16 | 17 | 9.00 | 11.00 | 18.00 | 10 | 315 bar 4568 psi |
L |
| AME10LMU05.1 | M 16.0 | X 1.50 | 1/2 | 17 | 9.00 | 11.00 | 18.00 | 10 | 315 bar 4568 psi |
L |
| AME10SMU06.1 | M 18.0 | X 1.50 | 9/16 | 19 | 10.00 | 14.50 | 22.00 | 10 | 630 bar 9137 psi |
S |
| AME12LMU06.1 | M 18.0 | X 1.50 | 9/16 | 19 | 10.00 | 11.00 | 18.00 | 12 | 315 bar 4568 psi |
L |
| AME12LMU08.1 | M 18.0 | X 1.50 | 3/4 | 24 | 11.00 | 13.00 | 20.00 | 12 | 315 bar 4568 psi |
L |
| AME12LMU10.1 | M 18.0 | X 1.50 | 7/8 | 27 | 12.70 | 14.30 | 21.30 | 12 | 315 bar 4568 psi |
L |
| AME12SMU06.1 | M 20.0 | X 1.50 | 9/16 | 22 | 10.00 | 14.50 | 22.00 | 12 | 630 bar 9137 psi |
S |
| AME12SMU08.1 | M 20.0 | X 1.50 | 3/4 | 24 | 11.00 | 17.50 | 25.00 | 12 | 630 bar 9137 psi |
S |
| AME14SMU08.1 | M 22.0 | X 1.50 | 3/4 | 27 | 11.00 | 15.90 | 23.90 | 14 | 630 bar 9137 psi |
S |
| AME15LMU08.1 | M 22.0 | X 1.50 | 3/4 | 24 | 11.00 | 14.00 | 21.00 | 15 | 315 bar 4568 psi |
L |
| AME16SMU08.1 | M 24.0 | X 1.50 | 3/4 | 24 | 11.00 | 15.50 | 24.00 | 16 | 400 bar 5801 psi |
S |
| AME16SMU10.1 | M 24.0 | X 1.50 | 7/8 | 27 | 12.70 | 18.80 | 27.30 | 16 | 400 bar 5801 psi |
S |
| AME18LMU08.1 | M 26.0 | X 1.50 | 3/4 | 27 | 11.00 | 14.50 | 22.00 | 18 | 315 bar 4568 psi |
L |
| AME18LMU10.1 | M 26.0 | X 1.50 | 7/8 | 27 | 12.70 | 14.80 | 22.30 | 18 | 315 bar 4568 psi |
L |
| AME20SMU08.1 | M 30.0 | X 2.00 | 3/4 | 32 | 11.00 | 20.50 | 31.00 | 20 | 400 bar 5801 psi |
S |
| AME20SMU10.1 | M 30.0 | X 2.00 | 7/8 | 32 | 12.70 | 20.80 | 31.30 | 20 | 400 bar 5801 psi |
S |
| AME20SMU12.1 | M 30.0 | X 2.00 | 1 1/16 | 32 | 15.00 | 20.50 | 31.00 | 20 | 400 bar 5801 psi |
S |
| AME22LMU10.1 | M 30.0 | X 2.00 | 7/8 | 32 | 12.70 | 16.80 | 24.30 | 22 | 160 bar 2320 psi |
L |
| AME22LMU12.1 | M 30.0 | X 2.00 | 1 1/16 | 32 | 15.00 | 16.50 | 24.00 | 22 | 160 bar 2320 psi |
L |
| AME22LMU16.1 | M 30.0 | X 2.00 | 1 5/16 | 41 | 15.00 | 17.50 | 25.00 | 22 | 160 bar 2320 psi |
L |
| AME25SMU12.1 | M 36.0 | X 2.00 | 1 1/16 | 36 | 15.00 | 23.00 | 35.00 | 25 | 400 bar 5801 psi |
S |
| AME25SMU16.1 | M 36.0 | X 2.00 | 1 5/16 | 41 | 15.00 | 23.00 | 35.00 | 25 | 400 bar 5801 psi |
S |
| AME28LMU12.1 | M 36.0 | X 2.00 | 1 1/16 | 41 | 15.00 | 17.50 | 25.00 | 28 | 160 bar 2320 psi |
L |
| AME28LMU16.1 | M 36.0 | X 2.00 | 1 5/16 | 41 | 15.00 | 17.50 | 25.00 | 28 | 160 bar 2320 psi |
L |
| AME30SMU16.1 | M 42.0 | X 2.00 | 1 5/16 | 46 | 15.00 | 23.50 | 37.00 | 30 | 400 bar 5801 psi |
S |
| AME30SMU20.1 | M 42.0 | X 2.00 | 1 5/8 | 50 | 15.00 | 23.50 | 37.00 | 30 | 400 bar 5801 psi |
S |
| AME35LMU16.1 | M 45.0 | X 2.00 | 1 5/16 | 46 | 15.00 | 17.50 | 28.00 | 35 | 160 bar 2320 psi |
L |
| AME35LMU20.1 | M 45.0 | X 2.00 | 1 5/8 | 50 | 15.00 | 17.50 | 28.00 | 35 | 160 bar 2320 psi |
L |
| AME38SMU20.1 | M 52.0 | X 2.00 | 1 5/8 | 55 | 15.00 | 26.00 | 42.00 | 38 | 315 bar 4568 psi |
S |
| AME38SMU24.1 | M 52.0 | X 2.00 | 1 7/8 | 55 | 15.00 | 26.00 | 42.00 | 38 | 315 bar 4568 psi |
S |
| AME42LMU20.1 | M 52.0 | X 2.00 | 1 5/8 | 55 | 15.00 | 19.00 | 30.00 | 42 | 160 bar 2320 psi |
L |
| AME42LMU24.1 | M 52.0 | X 2.00 | 1 7/8 | 55 | 15.00 | 19.00 | 30.00 | 42 | 160 bar 2320 psi |
L |
