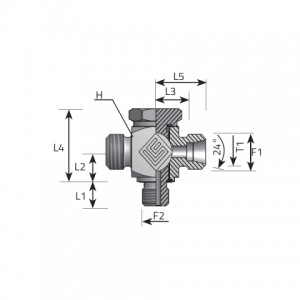

T veida adapteri ar regulējamu DIN ārējo vītni un metrisku pieslēgumu apakšpusē. (TME..LSBFM..P)

Brand : Vitillo

Vitillo Din Adapteri T veida adapteri ar regulējamu DIN ārējo vītni un metrisku pieslēgumu apakšpusē. (TME..LSBFM..P)
Kods F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm L1 mm L2 mm L3 mm L4 mm L5 mm T1 mm Spiediens Sērija
TME06LBFM10P.1 M 12.0 X 1.50 M 10.0 X 1.00 17 8.00 10.50 12.00 18.50 19.00 6 315 bar
4568 psi
L
TME06SBFM12P.1 M 14.0 X 1.50 M 12.0 X 1.50 22 12.00 14.00 16.50 25.00 23.50 6 630 bar
9137 psi
S
TME08LBFM12P.1 M 14.0 X 1.50 M 12.0 X 1.50 22 12.00 14.00 14.50 25.00 21.50 8 315 bar
4568 psi
L
TME08SBFM14P.1 M 16.0 X 1.50 M 14.0 X 1.50 22 12.00 14.00 16.50 25.00 23.50 8 630 bar
9137 psi
S
TME10LBFM14P.1 M 16.0 X 1.50 M 14.0 X 1.50 22 12.00 14.00 15.50 25.00 22.50 10 315 bar
4568 psi
L
TME10SBFM16P.1 M 18.0 X 1.50 M 16.0 X 1.50 27 12.00 16.50 18.50 30.00 26.00 10 630 bar
9137 psi
S
TME12LBFM16P.1 M 18.0 X 1.50 M 16.0 X 1.50 27 12.00 16.50 18.00 30.00 25.00 12 315 bar
4568 psi
L
TME12SBFM18P.1 M 20.0 X 1.50 M 18.0 X 1.50 32 12.00 18.50 21.50 33.50 29.00 12 630 bar
9137 psi
S
TME14SBFM20P.1 M 22.0 X 1.50 M 20.0 X 1.50 32 14.00 20.00 23.00 36.00 31.00 14 630 bar
9137 psi
S
TME15LBFM18P.1 M 22.0 X 1.50 M 18.0 X 1.50 32 12.00 18.50 22.00 33.50 29.00 15 315 bar
4568 psi
L
TME16SBFM22P.1 M 24.0 X 1.50 M 22.0 X 1.50 32 14.00 21.50 22.50 37.50 31.00 16 400 bar
5801 psi
S
TME18LBFM22P.1 M 26.0 X 1.50 M 22.0 X 1.50 32 14.00 21.50 21.50 37.50 29.00 18 315 bar
4568 psi
L
TME20SBFM27P.1 M 30.0 X 2.00 M 27.0 X 2.00 41 16.00 24.00 25.50 44.00 36.00 20 400 bar
5801 psi
S
TME22LBFM26P.1 M 30.0 X 2.00 M 26.0 X 1.50 41 16.00 24.00 26.50 44.00 34.00 22 160 bar
2320 psi
L
TME25SBFM33P.1 M 36.0 X 2.00 M 33.0 X 2.00 50 18.00 30.50 31.50 55.50 43.50 25 400 bar
5801 psi
S
TME28LBFM33P.1 M 36.0 X 2.00 M 33.0 X 2.00 50 18.00 30.50 31.00 55.50 38.50 28 160 bar
2320 psi
L
TME30SBFM42P.1 M 42.0 X 2.00 M 42.0 X 2.00 60 20.00 35.50 36.00 65.50 49.50 30 400 bar
5801 psi
S
TME35LBFM42P.1 M 45.0 X 2.00 M 42.0 X 2.00 60 20.00 35.50 35.00 65.50 45.50 35 160 bar
2320 psi
L
TME38SBFM48P.1 M 52.0 X 2.00 M 48.0 X 2.00 70 22.00 40.50 40.50 75.50 56.50 38 315 bar
4568 psi
S
TME42LBFM48P.1 M 52.0 X 2.00 M 48.0 X 2.00 70 22.00 40.50 39.50 75.50 50.50 42 160 bar
2320 psi
L
