T veida adapteri ar DIN un NPT apakšējo ārējo vītni. (TME..LSMN..P)

Brand : Vitillo

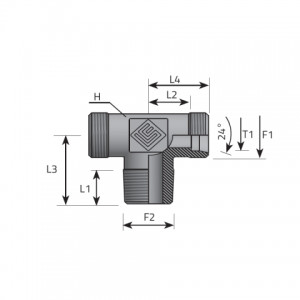

Kods	F1 mm	F1 Pitch mm	F2 inch	H mm	L1 mm	L2 mm	L3 mm	L4 mm	T1 mm	Spiediens	Sērija
TME06LMN02P.1	M 12.0	X 1.50	1/8	12	8.00	12.00	20.00	19.00	6	315 bar 4568 psi	L
TME06SMN04P.1	M 14.0	X 1.50	1/4	12	12.00	16.00	26.00	23.00	6	630 bar 9137 psi	S
TME08LMN04P.1	M 14.0	X 1.50	1/4	12	12.00	14.00	26.00	21.00	8	315 bar 4568 psi	L
TME08SMN04P.1	M 16.0	X 1.50	1/4	14	12.00	17.00	27.00	24.00	8	630 bar 9137 psi	S
TME10LMN04P.1	M 16.0	X 1.50	1/4	14	12.00	15.00	27.00	22.00	10	315 bar 4568 psi	L
TME10SMN06P.1	M 18.0	X 1.50	3/8	17	12.00	17.50	28.00	25.00	10	630 bar 9137 psi	S
TME12LMN06P.1	M 18.0	X 1.50	3/8	17	12.00	17.00	28.00	24.00	12	315 bar 4568 psi	L
TME12SMN06P.1	M 20.0	X 1.50	3/8	17	12.00	21.50	31.00	29.00	12	630 bar 9137 psi	S
TME14SMN08P.1	M 22.0	X 1.50	1/2	19	14.00	22.00	32.00	30.00	14	630 bar 9137 psi	S
TME15LMN08P.1	M 22.0	X 1.50	1/2	19	14.00	21.00	34.00	28.00	15	315 bar 4568 psi	L
TME16SMN08P.1	M 24.0	X 1.50	1/2	24	14.00	24.50	32.00	33.00	16	400 bar 5801 psi	S
TME18LMN08P.1	M 26.0	X 1.50	1/2	24	14.00	23.50	36.00	31.00	18	315 bar 4568 psi	L
TME20SMN12P.1	M 30.0	X 2.00	3/4	27	16.00	26.50	42.00	37.00	20	400 bar 5801 psi	S
TME22LMN12P.1	M 30.0	X 2.00	3/4	27	16.00	27.50	42.00	35.00	22	160 bar 2320 psi	L
TME25SMN16P.1	M 36.0	X 2.00	1	36	18.00	30.00	48.00	42.00	25	400 bar 5801 psi	S
TME28LMN16P.1	M 36.0	X 2.00	1	36	18.00	30.50	48.00	38.00	28	160 bar 2320 psi	L
TME30SMN20P.1	M 42.0	X 2.00	1 1/4	41	20.00	35.50	54.00	49.00	30	400 bar 5801 psi	S
TME35LMN20P.1	M 45.0	X 2.00	1 1/4	41	20.00	34.50	54.00	45.00	35	160 bar 2320 psi	L
TME38SMN24P.1	M 52.0	X 2.00	1 1/2	50	22.00	41.00	61.00	57.00	38	315 bar 4568 psi	S
TME42LMN24P.1	M 52.0	X 2.00	1 1/2	50	22.00	40.00	61.00	51.00	42	160 bar 2320 psi	L
