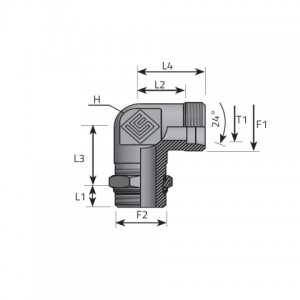

90° adapteri ar DIN un regulējamu metrisku ārējo vītni. (LME..LSMOMR..)

Brand : Vitillo

Vitillo Din Adapteri 90° adapteri ar DIN un regulējamu metrisku ārējo vītni. (LME..LSMOMR..)
Kods F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm L1 mm L2 mm L3 mm L4 mm T1 mm Spiediens Sērija
LME06LMOMR10.1 M 12.0 X 1.50 M 10.0 X 1.00 14 7.50 14.00 20.00 21.00 6 315 bar
4568 psi
L
LME06SMOMR12.1 M 14.0 X 1.50 M 12.0 X 1.50 14 9.50 15.50 23.50 22.50 6 315 bar
4568 psi
S
LME08LMOMR12.1 M 14.0 X 1.50 M 12.0 X 1.50 14 9.50 16.00 22.50 23.00 8 315 bar
4568 psi
L
LME08SMOMR14.1 M 16.0 X 1.50 M 14.0 X 1.50 14 9.50 18.00 26.50 25.00 8 315 bar
4568 psi
S
LME10LMOMR14.1 M 16.0 X 1.50 M 14.0 X 1.50 14 9.50 17.00 25.50 24.00 10 315 bar
4568 psi
L
LME10SMOMR16.1 M 18.0 X 1.50 M 16.0 X 1.50 19 11.00 18.00 27.00 25.50 10 315 bar
4568 psi
S
LME12LMOMR16.1 M 18.0 X 1.50 M 16.0 X 1.50 19 10.00 19.00 26.00 26.00 12 315 bar
4568 psi
L
LME12SMOMR18.1 M 20.0 X 1.50 M 18.0 X 1.50 19 12.50 22.00 30.50 29.50 12 315 bar
4568 psi
S
LME15LMOMR18.1 M 22.0 X 1.50 M 18.0 X 1.50 22 11.00 21.00 30.00 28.00 15 315 bar
4568 psi
L
LME16SMOMR22.1 M 24.0 X 1.50 M 22.0 X 1.50 27 13.00 25.00 37.00 33.50 16 250 bar
3626 psi
S
LME18LMOMR22.1 M 26.0 X 1.50 M 22.0 X 1.50 27 11.00 24.00 34.00 31.50 18 250 bar
3626 psi
L
LME20SMOMR27.1 M 30.0 X 2.00 M 27.0 X 2.00 27 14.00 28.00 39.50 38.50 20 250 bar
3626 psi
S
LME22LMOMR27.1 M 30.0 X 2.00 M 27.0 X 2.00 27 13.50 28.00 36.00 35.50 22 160 bar
2320 psi
L
LME25SMOMR33.1 M 36.0 X 2.00 M 33.0 X 2.00 33 14.00 30.50 43.00 42.50 25 160 bar
2320 psi
S
LME28LMOMR33.1 M 36.0 X 2.00 M 33.0 X 2.00 33 13.50 31.00 40.50 38.50 28 160 bar
2320 psi
L
LME30SMOMR42.1 M 42.0 X 2.00 M 42.0 X 2.00 41 16.00 36.00 52.00 49.50 30 160 bar
2320 psi
S
LME35LMOMR42.1 M 45.0 X 2.00 M 42.0 X 2.00 41 13.50 38.00 48.50 48.50 35 160 bar
2320 psi
L
LME38SMOMR48.1 M 52.0 X 2.00 M 48.0 X 2.00 48 18.00 34.00 51.00 50.00 38 160 bar
2320 psi
S
LME42LMOMR48.1 M 52.0 X 2.00 M 48.0 X 2.00 48 15.00 38.00 50.00 49.00 42 160 bar
2320 psi
L
