90° adapteri ar DIN un BSP (collīgo) ārējo vītni. (LME..LSMG..)

Brand : Vitillo

Vitillo Din Adapteri 90° adapteri ar DIN un BSP (collīgo) ārējo vītni. (LME..LSMG..)

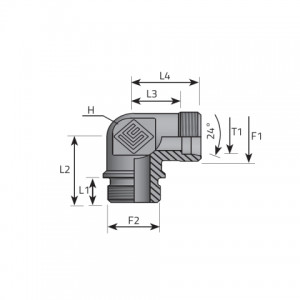

Kods F1 mm F1 Pitch mm F2 inch H mm L1 mm L2 mm L3 mm L4 mm T1 mm Spiediens Sērija
LME20SMG12.1 M 30.0 X 2.00 3/4 27 16.00 26.00 26.50 37.00 20 400 bar
5801 psi
S
LME22LMG12.1 M 30.0 X 2.00 3/4 27 16.00 26.00 27.50 35.00 22 160 bar
2320 psi
L
LME25SMG16.1 M 36.0 X 2.00 1 36 18.00 30.00 31.00 43.00 25 400 bar
5801 psi
S
LME28LMG16.1 M 36.0 X 2.00 1 36 18.00 30.00 30.50 38.00 28 160 bar
2320 psi
L
LME30SMG20.1 M 42.0 X 2.00 1 1/4 41 20.00 55.00 35.50 49.00 30 250 bar
3626 psi
S
LME35LMG20.1 M 45.0 X 2.00 1 1/4 41 20.00 55.00 34.50 45.00 35 160 bar
2320 psi
L
LME38SMG24.1 M 52.0 X 2.00 1 1/2 50 22.00 39.00 41.00 57.00 38 250 bar
3626 psi
S
LME42LMG24.1 M 52.0 X 2.00 1 1/2 50 22.00 39.00 40.00 51.00 42 160 bar
2320 psi
L

SAŅEMT PIEDĀVĀJUMU Vitillo 90 Adapteri Ar Din Un Bsp Colligo Arejo Vitni Lme Lsmg
