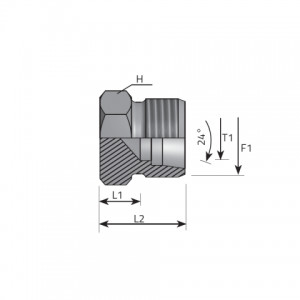

| Kods | F1 mm | F1 Pitch mm | H mm | L1 mm | L2 mm | T1 mm | Spiediens | Sērija |
|---|---|---|---|---|---|---|---|---|
| ATME06S.1 | M 14.0 | X 1.50 | 14 | 11.00 | 18.00 | 6 | 630 bar 9137 psi |
S |
| ATME08L.1 | M 14.0 | X 1.50 | 14 | 8.00 | 14.00 | 8 | 315 bar 4568 psi |
L |
| ATME08S.1 | M 16.0 | X 1.50 | 17 | 13.00 | 20.00 | 8 | 630 bar 9137 psi |
S |
| ATME10L.1 | M 16.0 | X 1.50 | 17 | 9.00 | 15.00 | 10 | 315 bar 4568 psi |
L |
| ATME10S.1 | M 18.0 | X 1.50 | 19 | 12.50 | 20.00 | 10 | 630 bar 9137 psi |
S |
| ATME12L.1 | M 18.0 | X 1.50 | 19 | 10.00 | 16.00 | 12 | 315 bar 4568 psi |
L |
| ATME12S.1 | M 20.0 | X 1.50 | 22 | 14.50 | 22.00 | 12 | 630 bar 9137 psi |
S |
| ATME14S.1 | M 22.0 | X 1.50 | 24 | 16.00 | 24.00 | 14 | 630 bar 9137 psi |
S |
| ATME15L.1 | M 22.0 | X 1.50 | 24 | 11.00 | 17.00 | 15 | 315 bar 4568 psi |
L |
| ATME16S.1 | M 24.0 | X 1.50 | 27 | 15.50 | 24.00 | 16 | 400 bar 5801 psi |
S |
| ATME18L.1 | M 26.0 | X 1.50 | 27 | 11.50 | 19.00 | 18 | 315 bar 4568 psi |
L |
| ATME20S.1 | M 30.0 | X 2.00 | 32 | 17.50 | 28.00 | 20 | 400 bar 5801 psi |
S |
| ATME22L.1 | M 30.0 | X 2.00 | 32 | 13.50 | 21.00 | 22 | 160 bar 2320 psi |
L |
| ATME25S.1 | M 36.0 | X 2.00 | 41 | 20.00 | 32.00 | 25 | 400 bar 5801 psi |
S |
| ATME28L.1 | M 36.0 | X 2.00 | 41 | 14.50 | 22.00 | 28 | 160 bar 2320 psi |
L |
| ATME30S.1 | M 42.0 | X 2.00 | 46 | 20.50 | 34.00 | 30 | 400 bar 5801 psi |
S |
| ATME35L.1 | M 45.0 | X 2.00 | 46 | 14.50 | 25.00 | 35 | 160 bar 2320 psi |
L |
| ATME38S.1 | M 52.0 | X 2.00 | 55 | 23.00 | 39.00 | 38 | 315 bar 4568 psi |
S |
| ATME42L.1 | M 52.0 | X 2.00 | 55 | 16.00 | 27.00 | 42 | 160 bar 2320 psi |
L |
