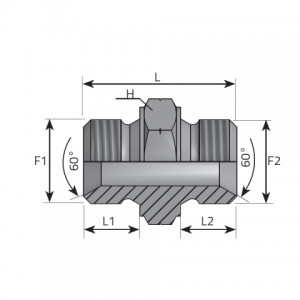

| Kods | F1 mm | F1 Pitch mm | F2 mm | F2 Pitch mm | H mm | L mm | L1 mm | L2 mm | Spiediens |
|---|---|---|---|---|---|---|---|---|---|
| ANMM1010 | M 10.0 | X 1.00 | M 10.0 | X 1.00 | 14 | 25.00 | 9.50 | 9.50 | 350 bar 5075 psi |
| ANMM1212 | M 12.0 | X 1.50 | M 12.0 | X 1.50 | 17 | 30.00 | 11.00 | 11.00 | 350 bar 5075 psi |
| ANMM1414 | M 14.0 | X 1.50 | M 14.0 | X 1.50 | 19 | 29.00 | 11.00 | 11.00 | 350 bar 5075 psi |
| ANMM1616 | M 16.0 | X 1.50 | M 16.0 | X 1.50 | 22 | 34.00 | 12.50 | 12.50 | 350 bar 5075 psi |
| ANMM1818 | M 18.0 | X 1.50 | M 18.0 | X 1.50 | 24 | 37.00 | 14.00 | 14.00 | 315 bar 4568 psi |
| ANMM2020 | M 20.0 | X 1.50 | M 20.0 | X 1.50 | 27 | 38.00 | 14.00 | 14.00 | 315 bar 4568 psi |
| ANMM2222 | M 22.0 | X 1.50 | M 22.0 | X 1.50 | 27 | 38.00 | 14.00 | 14.00 | 315 bar 4568 psi |
| ANMM2424 | M 24.0 | X 1.50 | M 24.0 | X 1.50 | 30 | 42.00 | 16.00 | 16.00 | 315 bar 4568 psi |
| ANMM2626 | M 26.0 | X 1.50 | M 26.0 | X 1.50 | 32 | 42.00 | 16.00 | 16.00 | 250 bar 3625 psi |
| ANMM2828 | M 28.0 | X 1.50 | M 28.0 | X 1.50 | 34 | 43.00 | 16.00 | 16.00 | 250 bar 3625 psi |
| ANMM3030 | M 30.0 | X 1.50 | M 30.0 | X 1.50 | 38 | 48.00 | 18.00 | 18.00 | 200 bar 2900 psi |
