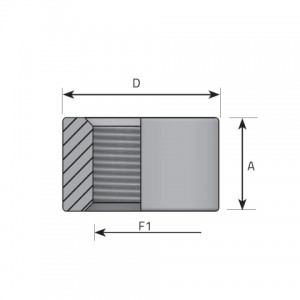

Kods | F1 inch | A mm | D mm | Spiediens |
---|---|---|---|---|
ABSG02 | 1/8 | 14.00 | 20.00 | 350 bar 5075 psi |
ABSG04 | 1/4 | 16.00 | 22.00 | 350 bar 5075 psi |
ABSG06 | 3/8 | 18.00 | 26.00 | 350 bar 5075 psi |
ABSG08 | 1/2 | 18.00 | 30.00 | 315 bar 4568 psi |
ABSG12 | 3/4 | 20.00 | 38.00 | 250 bar 3625 psi |
ABSG12H40 | 3/4 | 40.00 | 38.00 | 250 bar 3625 psi |
ABSG16 | 1 | 26.00 | 46.00 | 200 bar 2900 psi |
ABSG16H40 | 1 | 40.00 | 46.00 | 200 bar 2900 psi |
ABSG20 | 1 1/4 | 26.00 | 56.00 | 160 bar 2320 psi |
ABSG24 | 1 1/2 | 30.00 | 62.00 | 125 bar 1813 psi |
ABSG32 | 2 | 30.00 | 70.00 | 80 bar 1160 psi |
