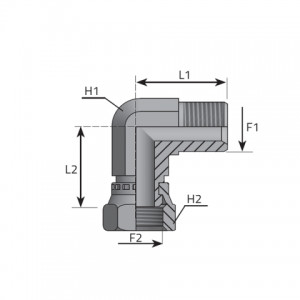

Kods | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | Spiediens |
---|---|---|---|---|---|---|---|
LMG02FGG02 | 1/8 | 1/8 | 14 | 15 | 22.00 | 28.50 | 350 bar 5075 psi |
LMG04FGG04 | 1/4 | 1/4 | 14 | 19 | 27.00 | 30.50 | 350 bar 5075 psi |
LMG06FGG06 | 3/8 | 3/8 | 19 | 22 | 29.00 | 36.00 | 350 bar 5075 psi |
LMG08FGG08 | 1/2 | 1/2 | 22 | 27 | 36.50 | 39.00 | 315 bar 4568 psi |
LMG12FGG12 | 3/4 | 3/4 | 27 | 32 | 42.00 | 45.00 | 250 bar 3625 psi |
LMG16FGG16 | 1 | 1 | 33 | 38 | 50.00 | 50.00 | 200 bar 2900 psi |
LMG20FGG20 | 1 1/4 | 1 1/4 | 41 | 50 | 56.00 | 64.00 | 160 bar 2320 psi |
LMG24FGG24 | 1 1/2 | 1 1/2 | 48 | 55 | 59.00 | 58.50 | 125 bar 1813 psi |
