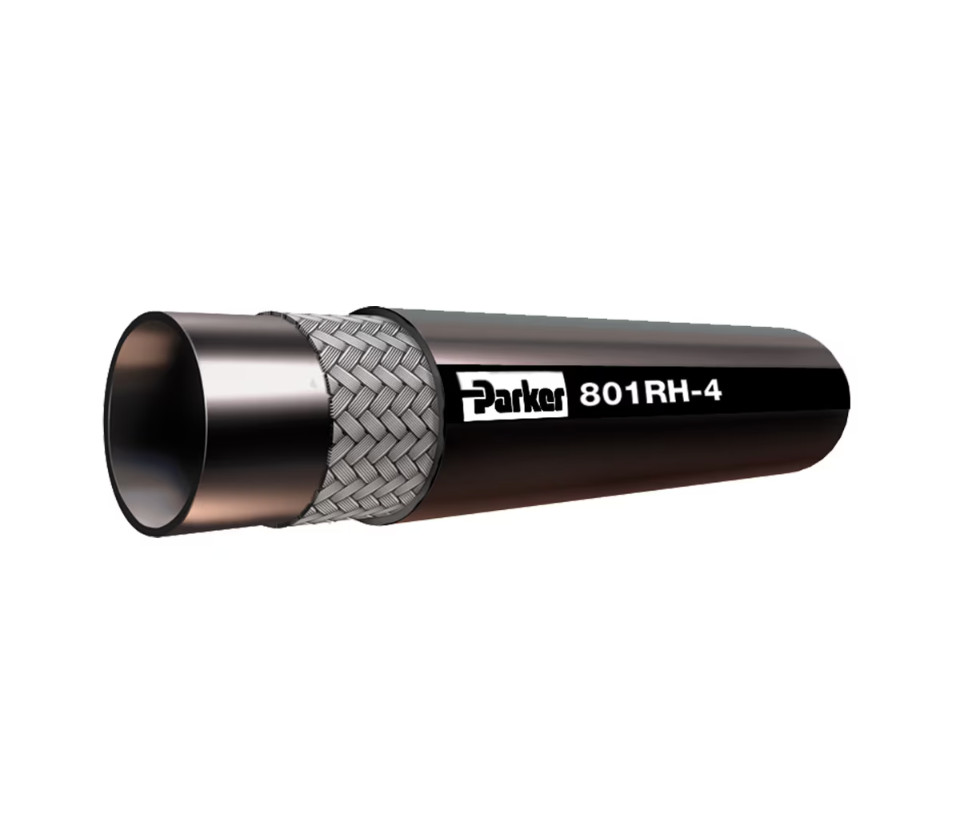

Parker's Low Pressure Push-Lok®- the self-grip hose system for low-pressure applications. Parker's Push-Lok hose line features the widest fluid compatibility, application and size range in the industry. The Push-Lok system is easy to use. No clamps or special tools are required during installation. Hose 801RH provides quick and easy assembly/disassembly. 801RH is ideal for low-pressure railways applications and compatible with Push-Lok fittings in steel, stainless steel and brass in connections such as DIN, BSP, SAE, JIC and ORFS.
The outstanding properties of Push-Lok are:
• Easy assembly
• Push-Lok assemblies can be made in seconds, saving valuable time and cost.
• The unique seal of Push-Lok ensures reliable, durable, leak-free service.
• High functional safety with a design factor of 4
• Wide range of hose and fittings for a wide range of applications.
• Fire retardant cover.
Markets:
• Railways
• Transportation
Features/Benefits:
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
• The Parker low pressure Push-Lok hose range is compatible with Push-Lok fittings in steel, stainless steel and brass.
• European standard EN45545 approved - HLS class for R22 (internal) and R23 (external)
Applications:
• All markets with low-pressure railways /transportation applications
The Parker Push-Lok® self-grip system for low-pressure applications is compatible with Push-Lok® fittings in series 82.
| Industry: | Transportation |
| Hose Inner Tube Material: | Synthetic Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 2.4 MPa, 24 bar, 350 psi |
| Product Type: | Push-Lok and Push-on Hoses |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Fire Retardant, Synthetic Rubber |
| Materials of Construction: | Rubber |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 0.95 bar, 28.05 inch-Hg, 712.56 mm-Hg |
| Division: | Polymer Hose Division Europe |
| Specifications Met: | EN 45545, EN 45545 HL2 and R23, Parker Specifications |
| Compatible Fitting: | 82 Series |
| Weight: | 0.13 to 0.16 kg/m, 0.09 to 0.11 lb/ft |
| Inside Diameter: | 1/4 to 3/8 inch, 6.4 to 9.5 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Low Pressure Hydraulics, Railway, Transportation |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Minimum Bend Radius: | 2.559 to 2.953 inch, 65 to 75 mm |
| Outside Diameter: | 0.496 to 0.626 inch, 12.7 to 15.9 mm |
| Media: | Air (General Industrial Air), Coolants (Water-Glycol) |
| Products | Hose I.D. (size) |
|---|---|
| 801RH-4-BLK-RL | -4 |
| 801RH-6-BLK-RL | -6 |
