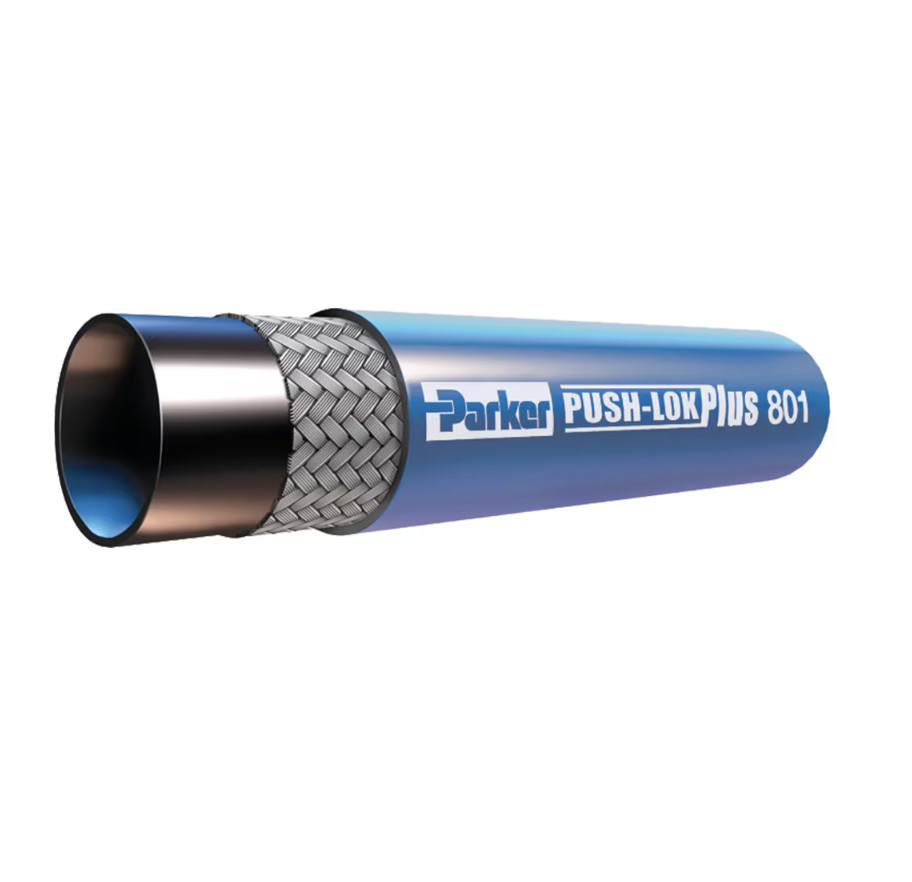

Parker's Low Pressure Push-Lok®- the self-grip hose system for low-pressure applications. Parker's Push-Lok hose line features the widest fluid compatibility, application and size range in the industry. The Push-Lok system is easy to use. No clamps or special tools are required during installation. Moreover, with Parker's exclusive color-code system, you can inventory, maintain and identify your hose needs easily and efficiently. The industry's most complete line of low-pressure hoses and fittings, Push-Lok offers the range and versatility to meet all your instrumentation needs. Hose 801PLUS with improved Nitrile (NBR) inner tube and extended chemical resistance/improved oil compatibility provides quick and easy assembly/disassembly. 801PLUS is available in six different colors with advantages in applications where a number of hose lines carry different media, Push-Lok colors reduce timely “tracing” of lines, preventing disconnection of wrong line and unnecessary downtime. 801PLUS is ideal for a variety of low-pressure applications in all markets and compatible with Push-Lok fittings in steel, stainless steel and brass in connections such as DIN, BSP, SAE, JIC and ORFS.
The outstanding properties of Push-Lok are:
• Easy assembly and organisation with Parker's exclusive color-code system.
• Using color-coded Push-Lok hoses is an excellent way to:
• Enhance product appearance
• Improve inventory control
• Identify industrial drop lines
• Easy control of maintenance intervals
• Simple stock planning in different departments
• Push-Lok assemblies can be made in seconds, saving valuable time and cost.
• The unique seal of Push-Lok ensures reliable, durable, leak-free service.
• High functional safety with a design factor of 4
• Wide range of hose and fittings for a wide range of applications.
Markets:
• Industrial
Features/Benefits:
• Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
• The high performance synthetic rubber hose cover is available in different colors. 801PLUS is very flexible and therefore ideal for a variety of applications where high flexibility is required.
• 801PLUS has the fullest range of color-coding to benefit your operations.
• The Parker low pressure Push-Lok hose range is compatible with Push-Lok fittings in steel, stainless steel and brass.
Applications:
• All markets with low-pressure applications
• Paper and pulp: Water/Air-Applications
The Parker Push-Lok® self-grip system for low-pressure applications is compatible with Push-Lok® fittings in series 82.
| Weight: | 0.13 to 0.55 kg/m, 0.09 to 0.37 lb/ft |
| Industry: | General Industrial, Marine, Transportation |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °F |
| Maximum Operating Pressure: | 1.4 to 2.4 MPa, 14 to 24 bar, 200 to 350 psi |
| Product Type: | Push-Lok and Push-on Hoses, Push-Lok and Push-on Hoses (Push-Lok Plus) |
| Technology: | Fluid & Gas Handling |
| Materials of Construction: | Rubber |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.559 to 9.843 inch, 65 to 250 mm |
| Cover Color: | Black, Blue, Gray, Green, Red, Yellow |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | 82 Series |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Low Pressure Hydraulics, Paper & Pulp for water/air applications |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Vacuum Pressure Rating: | 0.51 to 0.95 bar, 15.06 to 28.05 inch-Hg, 382.53 to 712.56 mm-Hg |
| Outside Diameter: | 0.476 to 1.299 inch, 12.1 to 33.0 mm |
| Media: | Air (General Industrial Air), Coolants (Water-Glycol), Petroleum Hydraulic Fluids |
| Products | Hose I.D. (size) | Cover Color | Hose Inside Diameter | Maximum Operating Pressure |
|---|---|---|---|---|
| 801PLUS-4-BLK-RL | -4 | Black | 6.4 mm - 1/4 inch | 24 bar |
| 801PLUS-4-BLU-RL | -4 | Blue | 6.4 mm - 1/4 inch | 24 bar |
| 801PLUS-4-RED-RL | -4 | Red | 6.4 mm - 1/4 inch | 24 bar |
| 801PLUS-4-GRN-RL | -4 | Green | 6.4 mm - 1/4 inch | 24 bar |
| 801PLUS-4-GRA-RL | -4 | Grey | 6.4 mm - 1/4 inch | 24 bar |
| 801PLUS-6-BLK-RL | -6 | Black | 9.5 mm - 3/8 inch | 24 bar |
| 801PLUS-6-BLU-RL | -6 | Blue | 9.5 mm - 3/8 inch | 24 bar |
| 801PLUS-6-RED-RL | -6 | Red | 9.5 mm - 3/8 inch | 24 bar |
| 801PLUS-6-GRN-RL | -6 | Green | 9.5 mm - 3/8 inch | 24 bar |
| 801PLUS-6-GRA-RL | -6 | Grey | 9.5 mm - 3/8 inch | 24 bar |
| 801PLUS-8-BLK-RL | -8 | Black | 12.7 mm - 1/2 inch | 21 bar |
| 801PLUS-8-BLU-RL | -8 | Blue | 12.7 mm - 1/2 inch | 21 bar |
| 801PLUS-8-RED-RL | -8 | Red | 12.7 mm - 1/2 inch | 21 bar |
| 801PLUS-8-GRN-RL | -8 | Green | 12.7 mm - 1/2 inch | 21 bar |
| 801PLUS-8-GRA-RL | -8 | Grey | 12.7 mm - 1/2 inch | 21 bar |
| 801PLUS-10-BLK-RL | -10 | Black | 15.9 mm - 5/8 inch | 21 bar |
| 801PLUS-10-BLU-RL | -10 | Blue | 15.9 mm - 5/8 inch | 21 bar |
| 801PLUS-10-RED-RL | -10 | Red | 15.9 mm - 5/8 inch | 21 bar |
| 801PLUS-10-GRN-RL | -10 | Green | 15.9 mm - 5/8 inch | 21 bar |
| 801PLUS-10-GRA-RL | -10 | Grey | 15.9 mm - 5/8 inch | 21 bar |
| 801PLUS-12-BLK-RL | -12 | Black | 19.1 mm - 3/4 inch | 21 bar |
| 801PLUS-12-BLU-RL | -12 | Blue | 19.1 mm - 3/4 inch | 21 bar |
| 801PLUS-12-RED-RL | -12 | Red | 19.1 mm - 3/4 inch | 21 bar |
| 801PLUS-12-GRN-RL | -12 | Green | 19.1 mm - 3/4 inch | 21 bar |
| 801PLUS-12-GRA-RL | -12 | Grey | 19.1 mm - 3/4 inch | 21 bar |
| 801PLUS-16-BLK-RL | -16 | Black | 25.4 mm - 1 inch | 14 bar |
| 801PLUS-16-BLU-RL | -16 | Blue | 25.4 mm - 1 inch | 14 bar |
| 801PLUS-16-RED-RL | -16 | Red | 25.4 mm - 1 inch | 14 bar |
| 801PLUS-16-GRN-RL | -16 | Green | 25.4 mm - 1 inch | 14 bar |
| 801PLUS-16-GRA-RL | -16 | Grey | 25.4 mm - 1 inch | 14 bar |
| 801-4-YEL-RL | -4 | Yellow | 6.4 mm - 1/4 inch | 24 bar |
| 801-6-YEL-RL | -6 | Yellow | 9.5 mm - 3/8 inch | 24 bar |
| 801-8-YEL-RL | -8 | Yellow | 12.7 mm - 1/2 inch | 21 bar |
| 801-10-YEL-RL | -10 | Yellow | 15.9 mm - 5/8 inch | 21 bar |
| 801-12-YEL-RL | -12 | Yellow | 19.1 mm - 3/4 inch | 21 bar |
| 801-16-YEL-RL | -16 | Yellow | 25.4 mm - 1 inch | 14 bar |
