Iesūkšanas un piegādes līnijām, notekūdeņiem un vispārējai lietošanai. Šļūtenes nodrošinātas ar muftām abos galos
*Vairāk info pdf failā

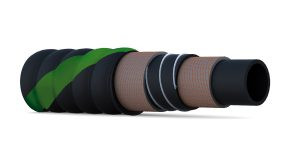

AQUACORR SD 5/10
| ID | CUFFS (THK x L) | WEIGHT | WP | BP | BENDING RADIUS | VACUUM | COIL LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | kg/m | bar | psi | bar | psi | mm | bar | m |
| 51 | 2 | 6 | 50 | 1,60 | 10 | 150 | 30 | 450 | 250 | 0.9 | 2/3/4/5/6 |
| 60 | 2 3/8 | 6 | 60 | 1,80 | 10 | 150 | 30 | 450 | 300 | 0.9 | 2/3/4/5/6 |
| 76 | 3 | 7 | 76 | 2,45 | 10 | 150 | 30 | 450 | 380 | 0.9 | 2/3/4/5/6 |
| 80 | 3 5/32 | 8 | 80 | 2,77 | 10 | 150 | 30 | 450 | 400 | 0.9 | 2/3/4/5/6 |
| 102 | 4 | 9 | 100 | 3,40 | 10 | 150 | 30 | 450 | 500 | 0.9 | 2/3/4/5/6 |
| 110 | 4 21/64 | 9 | 110 | 3,82 | 10 | 150 | 30 | 450 | 550 | 0.9 | 2/3/4/5/6 |
| 120 | 4 23/32 | 10 | 120 | 4,36 | 10 | 150 | 30 | 450 | 600 | 0.9 | 2/3/4/5/6 |
| 127 | 5 | 10 | 130 | 4,50 | 5 | 75 | 15 | 225 | 635 | 0.9 | 2/3/4/5/6 |
| 133 | 5 15/64 | 10 | 130 | 4,70 | 5 | 75 | 15 | 225 | 665 | 0.8 | 2/3/4/5/6 |
| 152 | 6 | 11 | 150 | 5,60 | 5 | 75 | 15 | 225 | 750 | 0.8 | 2/3/4/5/6 |
| 203 | 8 | 13 | 200 | 9,61 | 5 | 75 | 15 | 225 | 1015 | 0.7 | 2/3/4/5/6 |
| 254 | 10 | 13 | 250 | 12,26 | 3 | 45 | 9 | 135 | 1270 | 0.7 | 2/3/4/5/6 |
| 305 | 12 | 13 | 300 | 16,62 | 3 | 45 | 9 | 135 | 1525 | 0.7 | 2/3/4/5/6 |
| 350 | 13 25/32 | 16 | 350 | 19,25 | 3 | 45 | 9 | 135 | 1750 | 0.7 | 2/3/4/5/6 |
| 400 | 15 3/4 | 16 | 400 | 26,00 | 3 | 45 | 9 | 135 | 2015 | 0.7 | 2/3/4/5/6 |
| 457 | 18 | 18 | 450 | 36,00 | 3 | 45 | 9 | 135 | 2285 | 0.7 | 2/3/4/5/6 |
| 500 | 19 11/16 | 22 | 500 | 40,75 | 3 | 45 | 9 | 135 | 2500 | 6.0 | 2/3/4/5/6 |
| 609 | 24 | 25 | 600 | 50,68 | 3 | 45 | 9 | 135 | 3045 | 0.6 | 2/3/4/5/6 |
