Piegādes šļūtene saspiestam gaisam un inertiem šķidrumiem
*Vairāk info pdf failā

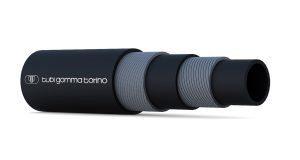

AERGEN 20 L/L
| ID | 0D | WEIGHT | WP | BP | BENDING RADIUS | COIL LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | kg/m | bar | psi | bar | psi | mm | m |
| 6 | 1/4 | 14 | 35/64 | 0,18 | 20 | 300 | 60 | 900 | 50 | MAX 100 |
| 8 | 5/16 | 17 | 43/64 | 0,25 | 20 | 300 | 60 | 900 | 65 | MAX 100 |
| 10 | 3/8 | 19 | 3/4 | 0,29 | 20 | 300 | 60 | 900 | 80 | MAX 100 |
| 13 | 1/2 | 23 | 29/32 | 0,40 | 20 | 300 | 60 | 900 | 105 | MAX 50 |
| 15 | 19/32 | 25 | 1 | 0,46 | 20 | 300 | 60 | 900 | 120 | MAX 50 |
| 16 | 5/8 | 26 | 1 5/16 | 0,48 | 20 | 300 | 60 | 900 | 130 | MAX 50 |
| 19 | 3/4 | 30 | 1 3/16 | 0,62 | 20 | 300 | 60 | 900 | 150 | MAX 50 |
| 25 | 1 | 37 | 1 29/64 | 0,86 | 20 | 300 | 60 | 900 | 200 | MAX 50 |
