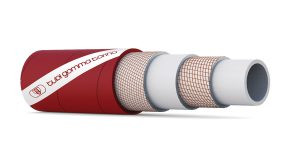

AGRAWINE

Name: AGRAWINE
Brand: Tubi Gomma Torino

Brand : Tubi Gomma Torino

Piegādes šļūtene šķidrai taukus nesaturošai pārtikai

*Vairāk info pdf failā

AGRAWINE /10

ID		0D		WEIGHT	WP		BP		COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	m
13	1/2	23	29/32	0,38	10	150	30	450	40
19	3/4	29	1 9/64	0,50	10	150	30	450	40
25	1	35	1 3/8	0,72	10	150	30	450	40
30	1 3/16	41	1 5/8	0,90	10	150	30	450	40
32	1 1/4	43	1 45/64	0,97	10	150	30	450	40
38	1 1/2	51	2	1,17	10	150	30	450	40
40	1 37/64	53	2 15/16	1,32	10	150	30	450	40
51	2	65	2 9/16	1,66	10	150	30	450	40
63.5	2 1/2	78	3 25/32	2,20	10	150	30	450	40
65	2 9/16	79	3 7/64	2,50	10	150	30	450	40
76	3	92	3 5/8	2,70	10	150	30	450	40
102	4	118	4 41/64	3,51	10	150	30	450	40

AGRAWINE SD /10

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	29	1 9/64	0,62	10	150	30	450	80	0.9	40
25	1	35	1 3/8	0,78	10	150	30	450	115	0.9	40
30	1 3/16	42	1 21/32	1,05	10	150	30	450	135	0.9	40
32	1 1/4	44	1 47/64	1,21	10	150	30	450	145	0.9	40
38	1 1/2	50	1 31/32	1,40	10	150	30	450	180	0.9	40
40	1 37/64	52	2 15/32	1,46	10	150	30	450	200	0.9	40
51	2	64	2 17/32	1,90	10	150	30	450	245	0.9	40
60	2 23/64	74	2 59/64	2,25	10	150	30	450	320	0.9	40
63.5	2 1/2	77	3 5/16	2,37	10	150	30	450	340	0.9	40
65	2 9/16	79	3 7/64	2,44	10	150	30	450	350	0.9	40
70	2 3/4	84	3 5/16	2,61	10	150	30	450	385	0.9	40
76	3	89	3 1/2	2,76	10	150	30	450	410	0.9	40
80	3 5/32	94	3 45/64	2,93	10	150	30	450	425	0.9	40
90	3 35/64	104	4 15/16	3,25	10	150	30	450	450	0.9	40
102	4	116	4 9/16	3,47	10	150	30	450	580	0.9	40

Lejupielādēt datu lapu Agrawine
