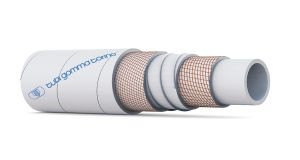

Iesūkšanas un piegādes šļūtene alkoholam līdz 96%, vīnam, alum, ūdenim u.c.
*Vairāk info pdf failā
AGRASPIRITS SD /10
ID | 0D | WEIGHT | WP | BP | BENDING RADIUS | VACUUM | COIL LENGTH | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
mm | inch | mm | inch | kg/m | bar | psi | bar | psi | mm | bar | m |
19 | 3/4 | 31 | 1 7/32 | 0,70 | 10 | 150 | 30 | 450 | 90 | 0.9 | 40 |
25 | 1 | 37 | 1 29/64 | 0,87 | 10 | 150 | 30 | 450 | 125 | 0.9 | 40 |
32 | 1 1/4 | 44 | 1 47/64 | 1,10 | 10 | 150 | 30 | 450 | 155 | 0.9 | 40 |
38 | 1 1/2 | 51 | 2 | 1,40 | 10 | 150 | 30 | 450 | 190 | 0.9 | 40 |
51 | 2 | 67 | 2 41/64 | 2,37 | 10 | 150 | 30 | 450 | 260 | 0.9 | 40 |
63.5 | 2 1/2 | 80 | 3 5/32 | 3,20 | 10 | 150 | 30 | 450 | 360 | 0.9 | 40 |
76 | 3 | 92 | 3 5/8 | 3,72 | 10 | 150 | 30 | 450 | 515 | 0.9 | 40 |
102 | 4 | 118 | 4 41/64 | 4,30 | 10 | 150 | 30 | 450 | 605 | 0.9 | 40 |
AGRASPIRITS SD /10 – BIIR
ID | 0D | WEIGHT | WP | BP | BENDING RADIUS | VACUUM | COIL LENGTH | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
mm | inch | mm | inch | kg/m | bar | psi | bar | psi | mm | bar | m |
19 | 3/4 | 31 | 1 7/32 | 0,79 | 10 | 150 | 30 | 450 | 80 | 0.9 | 40 |
25 | 1 | 37 | 1 29/64 | 0,97 | 10 | 150 | 30 | 450 | 115 | 0.9 | 40 |
32 | 1 1/4 | 44 | 1 47/64 | 1,22 | 10 | 150 | 30 | 450 | 145 | 0.9 | 40 |
38 | 1 1/2 | 51 | 2 | 1,42 | 10 | 150 | 30 | 450 | 180 | 0.9 | 40 |
51 | 2 | 67 | 2 41/64 | 2,24 | 10 | 150 | 30 | 450 | 245 | 0.9 | 40 |
63.5 | 2 1/2 | 80 | 3 5/32 | 2,60 | 10 | 150 | 30 | 450 | 340 | 0.9 | 40 |
76 | 3 | 92 | 3 5/8 | 3,22 | 10 | 150 | 30 | 450 | 410 | 0.9 | 40 |
102 | 4 | 118 | 4 41/64 | 4,70 | 10 | 150 | 30 | 450 | 580 | 0.9 | 40 |
