Piegādes šļūtene ēdienam, kosmētikai un farmaceitiskajiem produktiem augstā temperatūrā
*Vairāk info pdf failā

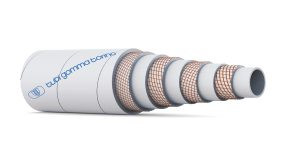

AGRASIL 200°C
| ID | 0D | WEIGHT | WP | BP | COIL LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | kg/m | bar | psi | bar | psi | m |
| 19 | 3/4 | 30 | 1 3/16 | 0,62 | 5 | 75 | 15 | 225 | 10/20 |
| 25 | 1 | 36 | 1 27/64 | 0,74 | 5 | 75 | 15 | 225 | 10/20 |
| 32 | 1 1/4 | 43 | 1 45/64 | 0,81 | 5 | 75 | 15 | 225 | 10/20 |
| 38 | 1 1/2 | 50 | 1 31/32 | 1,12 | 5 | 75 | 15 | 225 | 10/20 |
| 51 | 2 | 64 | 2 17/32 | 1,65 | 5 | 75 | 15 | 225 | 10/20 |
| 63.5 | 2 1/2 | 78 | 3 25/32 | 2,14 | 5 | 75 | 15 | 225 | 10/20 |
AGRASIL SD 200°C
| ID | 0D | WEIGHT | WP | BP | BENDING RADIUS | VACUUM | COIL LENGTH | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | kg/m | bar | psi | bar | psi | mm | bar | m |
| 19 | 3/4 | 31 | 1 7/32 | 0,74 | 5 | 75 | 15 | 225 | 100 | 0.7 | 10/20 |
| 25 | 1 | 37 | 1 29/64 | 0,96 | 5 | 75 | 15 | 225 | 130 | 0.7 | 10/20 |
| 32 | 1 1/4 | 44 | 1 47/64 | 1,13 | 5 | 75 | 15 | 225 | 180 | 0.7 | 10/20 |
| 38 | 1 1/2 | 51 | 2 | 1,24 | 5 | 75 | 15 | 225 | 200 | 0.7 | 10/20 |
| 51 | 2 | 65 | 2 9/16 | 1,97 | 5 | 75 | 15 | 225 | 270 | 0.7 | 10/20 |
| 63.5 | 2 1/2 | 79 | 3 7/64 | 2,45 | 5 | 75 | 15 | 225 | 350 | 0.7 | 10/20 |
