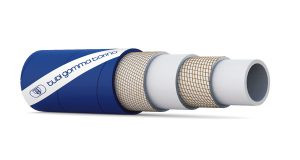

AGRAMILK

Name: AGRAMILK
Brand: Tubi Gomma Torino

Brand : Tubi Gomma Torino

Piegādes šļūtene pienam un taukainiem ēdieniem

*Vairāk info pdf failā

AGRAMILK /10

ID		0D		WEIGHT	WP		BP		COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	m
19	3/4	29	1 9/64	0,54	10	150	30	450	40
25	1	35	1 3/8	0,75	10	150	30	450	40
30	1 3/16	42	1 21/32	1,00	10	150	30	450	40
32	1 1/4	44	1 47/64	1,06	10	150	30	450	40
38	1 1/2	50	1 31/32	1,26	10	150	30	450	40
40	1 37/64	52	2 15/32	1,32	10	150	30	450	40
51	2	64	2 17/32	1,63	10	150	30	450	40
60	2 23/64	73	2 7/8	2,06	10	150	30	450	40
63.5	2 1/2	77	3 5/16	2,17	10	150	30	450	40
65	2 9/16	79	3 7/64	2,30	10	150	30	450	40
70	2 3/4	84	3 5/16	2,42	10	150	30	450	40
76	3	90	3 35/64	2,60	10	150	30	450	40
80	3 5/32	94	3 45/64	2,70	10	150	30	450	40
90	3 35/64	104	4 15/16	2,98	10	150	30	450	40
102	4	116	4 9/16	3,42	10	150	30	450	40

AGRAMILK SD /10

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	29	1 9/64	0,65	10	150	30	450	40	0.9	40
25	1	35	1 3/8	0,82	10	150	30	450	55	0.9	40
30	1 3/16	42	1 21/32	1,19	10	150	30	450	70	0.9	40
32	1 1/4	44	1 47/64	1,25	10	150	30	450	74	0.9	40
38	1 1/2	50	1 31/32	1,45	10	150	30	450	86	0.9	40
40	1 37/64	52	2 15/32	1,51	10	150	30	450	90	0.9	40
51	2	64	2 17/32	1,96	10	150	30	450	112	0.9	40
60	2 23/64	73	2 7/8	2,33	10	150	30	450	130	0.9	40
63.5	2 1/2	77	3 5/16	2,45	10	150	30	450	136	0.9	40
65	2 9/16	79	3 7/64	2,76	10	150	30	450	140	0.9	40
70	2 3/4	84	3 5/16	2,82	10	150	30	450	150	0.9	40
76	3	90	3 35/64	2,97	10	150	30	450	160	0.9	40
80	3 5/32	94	3 45/64	3,13	10	150	30	450	175	0.9	40
90	3 35/64	104	4 15/16	3,76	10	150	30	450	330	0.9	40
102	4	116	4 9/16	4,11	10	150	30	450	380	0.9	40

AGRAMILK SD /10 2W

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
32	1 1/4	44	1 47/64	1,00	10	150	30	450	80	0.9	40
38	1 1/2	50	1 31/32	1,26	10	150	30	450	125	0.9	40
51	2	65	2 9/16	1,85	10	150	30	450	150	0.9	40
63.5	2 1/2	77	3 5/16	2,10	10	150	30	450	160	0.9	40
76	3	92	3 5/8	2,90	10	150	30	450	190	0.9	40
102	4	118	4 41/64	4,10	10	150	30	450	200	0.9	40
152	6	172	6 49/64	8,30	10	150	30	450	425	0.9	40

Lejupielādēt datu lapu Agramilk
