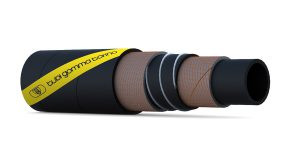

PETROSPIR

Name: PETROSPIR
Brand: Tubi Gomma Torino

Brand : Tubi Gomma Torino

Iesūkšanas un piegādes šļūtene minerāleļļai un degvielai ar aromātisko ogļūdeņražu piemaisījumu līdz 50%

*Vairāk info pdf failā

PETROSPIR SD/ 10

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	29	1 5/32	0,67	10	150	30	450	115	0.9	40/61
25	1	35	1 3/8	0,80	10	150	30	450	150	0.9	40/61
30	1 3/16	40	1 9/16	0,92	10	150	30	450	180	0.9	40/61
32	1 1/4	42	1 21/32	1,00	10	150	30	450	190	0.9	40/61
35	1 3/8	46	1 13/16	1,10	10	150	30	450	210	0.9	40/61
38	1 1/2	49	1 15/16	1,24	10	150	30	450	240	0.9	40/61
40	1 9/16	51	2	1,30	10	150	30	450	240	0.9	40/61
42	1 21/32	53	2 15/16	1,40	10	150	30	450	255	0.9	40/61
45	1 25/32	56	2 13/64	1,50	10	150	30	450	270	0.9	40/61
51	2	62	2 7/16	1,60	10	150	30	450	300	0.9	40/61
51	2	63	2 31/64	1,79	10	150	30	450	300	0.9	40/61
60	2 3/8	72	2 27/32	2,06	10	150	30	450	360	0.9	40/61
63.5	2 1/2	76	3	2,27	10	150	30	450	380	0.7	40/61
76	3	89	3 1/2	2,95	10	150	30	450	460	0.7	40/61
80	3 5/32	94	3 11/16	3,20	10	150	30	450	480	0.7	40/61
90	3 35/64	104	4 15/16	3,64	10	150	30	450	540	0.7	40/61
102	4	117	4 19/32	4,40	10	150	30	450	600	0.7	40/61
120	4 23/32	135	4 5/16	4,98	10	150	30	450	720	0.7	40/61
127	5	143	5 5/8	6,07	10	150	30	450	760	0.7	40/61
152	6	170	6 11/16	7,70	10	150	30	450	900	0.7	40/61
203	8	225	8 25/32	12,60	10	150	30	450	1220	0.5	20/40
254	10	282	11 7/64	17,50	10	150	30	450	1525	0.5	20

PETROSPIR SD/16 EN 12115

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	31	1 7/32	0,70	16	240	64	960	125	0.9	40
25	1	37	1 29/64	0,90	16	240	64	960	150	0.9	40/61
32	1 1/4	44	1 47/64	1,20	16	240	64	960	175	0.9	40/61
38	1 1/2	51	2	1,50	16	240	64	960	225	0.9	40/61
51	2	67	2 41/64	2,30	16	240	64	960	275	0.9	40/61
63.5	2 1/2	80	3 5/32	2,80	16	240	64	960	300	0.9	40/61
76	3	92	3 5/8	3,30	16	240	64	960	350	0.8	40/61
102	4	118	4 41/64	4,70	12	180	48	720	450	0.8	40/61

PETROSPIR SD/16 EN 1360 Type 2

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	31	1 7/32	0,70	16	240	64	960	125	0.9	40
25	1	37	1 29/64	0,90	16	240	64	960	150	0.9	40/61
32	1 1/4	44	1 47/64	1,20	16	240	64	960	175	0.9	40/61
38	1 1/2	51	2	1,50	16	240	64	960	225	0.9	40/61
51	2	67	2 41/64	2,30	16	240	64	960	275	0.9	40/61
63.5	2 1/2	80	3 5/32	2,80	16	240	64	960	300	0.9	40/61
76	3	92	3 5/8	3,30	16	240	64	960	350	0.8	40/61
102	4	118	4 41/64	4,70	12	180	48	720	450	0.8	40/61

PETROSPIR SD/16 EN 1761 Type SD

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	31	1 7/32	0,67	16	240	48	720	125	0.9	40
25	1	37	1 29/64	0,81	16	240	48	720	150	0.9	40/61
32	1 1/4	44	1 47/64	1,03	16	240	48	720	175	0.9	40/61
38	1 1/2	51	2	1,38	16	240	48	720	225	0.9	40/61
51	2	67	2 41/64	2,21	16	240	48	720	275	0.9	40/61
63.5	2 1/2	79	3 7/64	2,62	16	240	48	720	300	0.9	40/61
76	3	92	3 5/8	3,38	16	240	48	720	350	0.7	40/61
102	4	118	4 41/64	4,42	16	240	48	720	450	0.7	40/61
127	5	145	5 45/64	5,80	16	240	48	720	635	0.7	40/61
152	6	172	6 49/64	8,14	16	240	48	720	750	0.7	40/61

Lejupielādēt datu lapu Petrospir
