Iesūkšanas un piegādes šļūtene minerāleļļai un degvielai ar aromātisko ogļūdeņražu piemaisījumu līdz 50%, ļoti lokana
*Vairāk info pdf failā

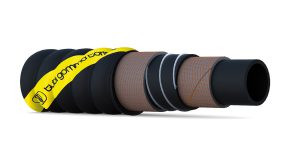

PETROPLUS SD /5
| ID | WEIGHT | WP | BP | BENDING RADIUS | VACUUM | COIL LENGTH | |||
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | kg/m | bar | psi | bar | psi | mm | bar | m |
| 19 | 3/4 | 0,40 | 5 | 75 | 15 | 225 | 50 | 0.5 | 40 |
| 22 | 7/8 | 0,46 | 5 | 75 | 15 | 225 | 60 | 0.5 | 40 |
| 25 | 1 | 0,50 | 5 | 75 | 15 | 225 | 65 | 0.5 | 40 |
| 28 | 1 7/64 | 0,55 | 5 | 75 | 15 | 225 | 75 | 0.5 | 40 |
| 32 | 1 1/4 | 0,62 | 5 | 75 | 15 | 225 | 80 | 0.5 | 40 |
| 35 | 1 3/8 | 0,67 | 5 | 75 | 15 | 225 | 90 | 0.5 | 40 |
| 38 | 1 1/2 | 0,71 | 5 | 75 | 15 | 225 | 100 | 0.5 | 40 |
| 42 | 1 21/32 | 0,77 | 5 | 75 | 15 | 225 | 115 | 0.5 | 40 |
| 45 | 1 25/32 | 0,82 | 5 | 75 | 15 | 225 | 125 | 0.5 | 40 |
| 50 | 1 31/32 | 1,00 | 5 | 75 | 15 | 225 | 145 | 0.5 | 40 |
| 51 | 2 | 1,00 | 5 | 75 | 15 | 225 | 145 | 0.5 | 40 |
| 63.5 | 2 1/2 | 1,24 | 5 | 75 | 15 | 225 | 180 | 0.5 | 40 |
| 76 | 3 | 1,68 | 5 | 75 | 15 | 225 | 230 | 0.5 | 40 |
| 80 | 3 5/32 | 1,80 | 5 | 75 | 15 | 225 | 245 | 0.5 | 40 |
| 90 | 3 35/64 | 2,20 | 5 | 75 | 15 | 225 | 300 | 0.5 | 40 |
| 102 | 4 | 2,50 | 5 | 75 | 15 | 225 | 330 | 0.5 | 40 |
