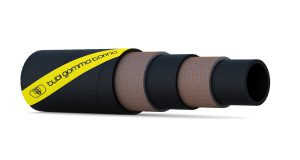

PETROGAS

Name: PETROGAS
Brand: Tubi Gomma Torino

Brand : Tubi Gomma Torino

Piegādes šļūtene sašķidrinātai gāzei

*Vairāk info pdf failā

PETROGAS 25 EN1762 TYPE D

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	m
13	1/2	23	29/32	0,39	25	375	100	1500	100	40
16	5/8	26	1 5/16	0,47	25	375	100	1500	120	40
19	3/4	31	1 7/32	0,63	25	375	100	1500	160	40
25	1	38	1 1/2	0,83	25	375	100	1500	200	40/45/50
32	1 1/4	45	1 25/32	1,05	25	375	100	1500	250	40/45/50
38	1 1/2	52	2 15/32	1,20	25	375	100	1500	320	40/45/50
51	2	67	2 41/64	1,83	25	375	100	1500	400	40/45/50
63.5	2 1/2	81	3 3/16	2,50	25	375	100	1500	550	40/61
76	3	94	3 45/64	3,02	25	375	100	1500	650	40/61
102	4	120	4 23/32	3,86	25	375	100	1500	800	40/61

PETROGAS 25 EN1762 TYPE SD

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
13	1/2	23	29/32	0,44	25	375	100	1500	55	0.9	40
16	5/8	26	1 5/16	0,52	25	375	100	1500	75	0.9	40
19	3/4	31	1 7/32	0,68	25	375	100	1500	100	0.9	40
25	1	38	1 1/2	0,90	25	375	100	1500	140	0.9	40/45/50
32	1 1/4	45	1 25/32	1,18	25	375	100	1500	190	0.9	40/45/50
38	1 1/2	52	2 15/32	1,50	25	375	100	1500	200	0.9	40/45/50
51	2	67	2 41/64	2,19	25	375	100	1500	280	0.9	40/45/50
63.5	2 1/2	81	3 3/16	2,90	25	375	100	1500	380	0.7	40/61
76	3	94	3 45/64	3,58	25	375	100	1500	460	0.7	40/61
102	4	120	4 23/32	4,55	25	375	100	1500	625	0.7	40/61

Lejupielādēt datu lapu Petrogas
