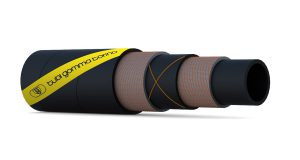

PETROCRAFT

Name: PETROCRAFT
Brand: Tubi Gomma Torino

Brand : Tubi Gomma Torino

Piegādes šļūtene lidmašīnu uzpildei, degvielai ar aromātisko ogļūdeņražu piemaisījumu līdz 50%

*Vairāk info pdf failā

PETROCRAFT D/20 EN1825 TYPE B

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	m
19	3/4	29	1 9/64	0,52	20	300	80	1200	113	40
25	1	38	1 1/2	0,84	20	300	80	1200	150	40/61
32	1 1/4	45	1 25/32	1,00	20	300	80	1200	200	40/61
38	1 1/2	51	2	1,16	20	300	80	1200	230	40/61
51	2	65	2 9/16	1,70	20	300	80	1200	305	40/61
63.5	2 1/2	79	3 7/64	2,06	20	300	80	1200	390	40/61
76	3	92	3 5/8	2,56	20	300	80	1200	460	40/61
102	4	120	4 23/32	3,73	20	300	80	1200	610	40/61

PETROCRAFT D/20 EN1825 TYPE C

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	m
19	3/4	29	1 9/64	0,52	20	300	80	1200	113	40
25	1	38	1 1/2	0,84	20	300	80	1200	150	40/61
32	1 1/4	45	1 25/32	1,00	20	300	80	1200	200	40/61
38	1 1/2	51	2	1,16	20	300	80	1200	230	40/61
51	2	65	2 9/16	1,70	20	300	80	1200	305	40/61
63.5	2 1/2	79	3 7/64	2,06	20	300	80	1200	390	40/61
76	3	92	3 5/8	2,56	20	300	80	1200	460	40/61
102	4	120	4 23/32	3,73	20	300	80	1200	610	40/61

PETROCRAFT SD/20 EN1825 TYPE E

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	VACUUM	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	bar	m
19	3/4	31	1 7/32	0,69	20	300	80	1200	85	0.9	40
25	1	39	1 17/32	0,97	20	300	80	1200	115	0.9	40/61
32	1 1/4	46	1 13/16	1,22	20	300	80	1200	150	0.9	40/61
38	1 1/2	53	2 15/16	1,59	20	300	80	1200	180	0.9	40/61
51	2	67	2 41/64	2,32	20	300	80	1200	250	0.9	40/61
63.5	2 1/2	81	3 3/16	2,86	20	300	80	1200	325	0.7	40/61
76	3	95	3 47/64	3,70	20	300	80	1200	400	0.7	40/61
102	4	123	4 27/32	5,17	20	300	80	1200	550	0.7	40/61

Lejupielādēt datu lapu Petrocraft
