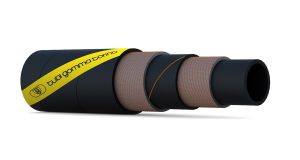

PETROCORD

Name: PETROCORD
Brand: Tubi Gomma Torino

Brand : Tubi Gomma Torino

Piegādes šļūtene minerāleļļai un degvielai ar aromātisko ogļūdeņražu piemaisījumu līdz 50%

*Vairāk info pdf failā

PETROCORD /10

ID		0D		WEIGHT	WP		BP		COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	m
19	3/4	29	1 9/64	0,55	10	150	30	450	40/61
25	1	35	1 3/8	0,70	10	150	30	450	40/61
28	1 7/64	38	1 1/2	0,76	10	150	30	450	40/61
30	1 3/16	40	1 37/64	0,80	10	150	30	450	40/61
32	1 1/4	42	1 21/32	0,85	10	150	30	450	40/61
35	1 3/8	45	1 25/32	0,92	10	150	30	450	40/61
38	1 1/2	48	1 57/64	0,96	10	150	30	450	40/61
40	1 37/64	51	2	1,05	10	150	30	450	40/61
42	1 21/32	53	2 15/16	1,15	10	150	30	450	40/61
45	1 25/32	56	2 13/64	1,20	10	150	30	450	40/61
51	2	62	2 7/16	1,35	10	150	30	450	40/61
60	2 23/64	72	2 53/64	1,70	10	150	30	450	40/61
63.5	2 1/2	75	2 61/64	1,80	10	150	30	450	40/61
76	3	91	3 37/64	2,56	10	150	30	450	40/61
102	4	118	4 41/64	3,60	10	150	30	450	40/61

PETROCORD D/16 EN 12115

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	m
19	3/4	31	1 7/32	0,60	16	240	64	960	125	40
25	1	37	1 29/64	0,89	16	240	64	960	150	40/61
32	1 1/4	44	1 47/64	1,00	16	240	64	960	175	40/61
38	1 1/2	51	2	1,35	16	240	64	960	225	40/61
51	2	67	2 41/64	2,00	16	240	64	960	275	40/61
63.5	2 1/2	80	3 5/32	2,50	16	240	64	960	300	40/61
76	3	92	3 5/8	2,85	16	240	64	960	350	40/61
102	4	122	4 51/64	4,15	16	240	64	960	450	40/61

PETROCORD D/16 EN1360 TYPE 1

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	m
13	1/2	22	7/8	0,34	16	240	48	720	60	40
16	5/8	26	1 5/16	0,48	16	240	48	720	80	40
19	3/4	30	1 3/16	0,53	16	240	48	720	100	40
25	1	38	1 1/2	0,74	16	240	48	720	150	40/61
32	1 1/4	45	1 25/32	1,10	16	240	48	720	175	40/61
35	1 3/8	48	1 57/64	1,19	16	240	48	720	195	40/61
38	1 1/2	51	2	1,24	16	240	48	720	225	40/61
40	1 37/64	54	2 1/8	1,30	16	240	48	720	230	40/61

PETROCORD D/16 EN 1761 TYPE D

ID		0D		WEIGHT	WP		BP		BENDING RADIUS	COIL LENGTH
mm	inch	mm	inch	kg/m	bar	psi	bar	psi	mm	m
19	3/4	31	1 7/32	0,62	16	240	48	720	125	40
25	1	37	1 29/64	0,73	16	240	48	720	150	40/61
32	1 1/4	44	1 47/64	0,94	16	240	48	720	175	40/61
38	1 1/2	51	2	1,19	16	240	48	720	225	40/61
51	2	67	2 41/64	2,00	16	240	48	720	275	40/61
63.5	2 1/2	79	3 7/64	2,24	16	240	48	720	300	40/61
76	3	92	3 5/8	2,73	16	240	48	720	350	40/61
102	4	118	4 41/64	3,70	16	240	48	720	450	40/61
127	5	145	5 45/64	4,82	16	240	48	720	635	40/61
152	6	172	6 49/64	6,13	16	240	48	720	750	40/61

Lejupielādēt datu lapu Petrocord
