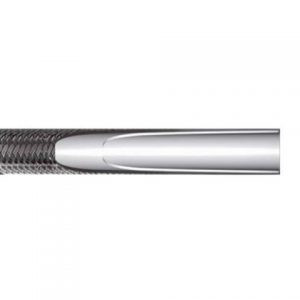

TEKNO FHL

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Wall thickness	Weight	Cover Type
THFHL02	3	3.3 mm 1/8 “	5.9 mm 0.23 inch	275 bar 3988 psi	1100 bar 15950 psi	25 mm 0.98 inch	0.70 mm 28.000 inch	0.06 kg/mt 0.04 lb/ft	Standard
THFHL03	5	4.8 mm 3/16 “	7.4 mm 0.29 inch	200 bar 2900 psi	800 bar 11600 psi	35 mm 1.38 inch	0.70 mm 28.000 inch	0.07 kg/mt 0.05 lb/ft	Standard
THFHL04	6	6.4 mm 1/4 “	9.0 mm 0.35 inch	175 bar 2538 psi	700 bar 10150 psi	45 mm 1.77 inch	0.70 mm 28.000 inch	0.09 kg/mt 0.06 lb/ft	Standard
THFHL05	8	7.9 mm 5/16 “	10.8 mm 0.43 inch	150 bar 2175 psi	600 bar 8700 psi	50 mm 1.97 inch	0.70 mm 28.000 inch	0.13 kg/mt 0.09 lb/ft	Standard
THFHL06	10	9.5 mm 3/8 “	12.4 mm 0.49 inch	135 bar 1958 psi	540 bar 7830 psi	55 mm 2.16 inch	0.70 mm 28.000 inch	0.15 kg/mt 0.10 lb/ft	Standard
THFHL08	12	12.7 mm 1/2 “	15.7 mm 0.62 inch	120 bar 1740 psi	480 bar 6960 psi	70 mm 2.75 inch	0.70 mm 28.000 inch	0.21 kg/mt 0.14 lb/ft	Standard
THFHL10	16	15.9 mm 5/8 “	19.1 mm 0.75 inch	100 bar 1450 psi	400 bar 5800 psi	130 mm 5.11 inch	0.70 mm 28.000 inch	0.26 kg/mt 0.17 lb/ft	Standard
THFHL12	19	19.0 mm 3/4 “	22.2 mm 0.87 inch	90 bar 1305 psi	360 bar 5220 psi	190 mm 7.47 inch	0.80 mm 31.000 inch	0.32 kg/mt 0.22 lb/ft	Standard
THFHL16	25	25.4 mm 1 “	29.3 mm 1.15 inch	65 bar 943 psi	260 bar 3770 psi	270 mm 10.62 inch	0.80 mm 31.000 inch	0.45 kg/mt 0.30 lb/ft	Standard
