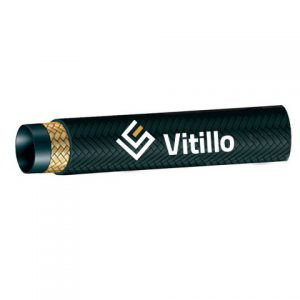

TEKNO R5

Brand : Vitillo


Code	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
THR503	4.8 mm 3/16 “	12.9 mm 0.51 inch	207 bar 3000 psi	830 bar 12000 psi	75 mm 2.95 inch	0.25 kg/mt 0.17 lb/ft	Standard
THR504	6.4 mm 1/4 “	14.5 mm 0.57 inch	207 bar 3000 psi	830 bar 12000 psi	85 mm 3.34 inch	0.29 kg/mt 0.19 lb/ft	Standard
THR505	7.9 mm 5/16 “	16.8 mm 0.66 inch	155 bar 2250 psi	620 bar 9000 psi	100 mm 3.93 inch	0.37 kg/mt 0.25 lb/ft	Standard
THR508	12.8 mm 1/2 “	22.9 mm 0.90 inch	121 bar 1750 psi	484 bar 7000 psi	140 mm 5.51 inch	0.59 kg/mt 0.40 lb/ft	Standard
THR510	16.0 mm 5/8 “	27.1 mm 1.07 inch	103 bar 1500 psi	412 bar 6000 psi	165 mm 6.49 inch	0.73 kg/mt 0.49 lb/ft	Standard

SAŅEMT PIEDĀVĀJUMU Vitillo Tekno R5
