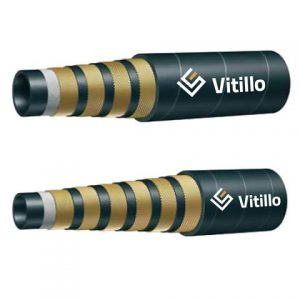

EVEREST 6000

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TSER606	10	9.5 mm 3/8 “	20.0 mm 0.79 inch	420 bar 6000 psi	1680 bar 24360 psi	65 mm 2.56 inch	0.68 kg/mt 0.46 lb/ft	Standard
TSER608	12	12.8 mm 1/2 “	22.7 mm 0.89 inch	420 bar 6000 psi	1680 bar 24360 psi	90 mm 3.54 inch	0.80 kg/mt 0.54 lb/ft	Standard
TSER610	16	16.0 mm 5/8 “	26.6 mm 1.01 inch	420 bar 6000 psi	1680 bar 24360 psi	115 mm 4.53 inch	1.04 kg/mt 0.70 lb/ft	Standard
TSER612	19	19.0 mm 3/4 “	31.2 mm 1.23 inch	420 bar 6000 psi	1680 bar 24360 psi	140 mm 5.51 inch	1.46 kg/mt 0.98 lb/ft	Standard
TSER616	25	25.4 mm 1 “	38.6 mm 1.52 inch	420 bar 6000 psi	1680 bar 24360 psi	165 mm 6.70 inch	2.12 kg/mt 1.42 lb/ft	Standard
TSER620	31	31.8 mm 1 1/4 “	48.8 mm 1.92 inch	420 bar 6000 psi	1680 bar 24360 psi	225 mm 8.86 inch	3.39 kg/mt 2.28 lb/ft	Standard
TSER624	38	38.1 mm 1 1/2 “	57.0 mm 2.24 inch	420 bar 6000 psi	1680 bar 24360 psi	305 mm 12.00 inch	4.55 kg/mt 3.06 lb/ft	Standard

SAŅEMT PIEDĀVĀJUMU Vitillo Everest 6000
