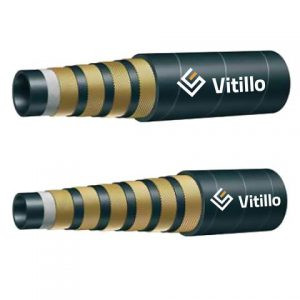

EVEREST 5000

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TSER508	12	12.8 mm 1/2 “	27.7 mm 0.89 inch	350 bar 5000 psi	1400 bar 20000 psi	90 mm 3.54 inch	0.72 kg/mt 0.48 lb/ft	Standard
TSER510	16	16.0 mm 5/8 “	26.2 mm 1.03 inch	350 bar 5000 psi	1400 bar 20000 psi	100 mm 3.94 inch	0.92 kg/mt 0.62 lb/ft	Standard
TSER512	19	19.0 mm 3/4 “	31.2 mm 1.23 inch	350 bar 5000 psi	1400 bar 20000 psi	120 mm 4.72 inch	1.39 kg/mt 0.93 lb/ft	Standard
TSER516	25	25.4 mm 1 “	38.1 mm 1.50 inch	350 bar 5000 psi	1400 bar 20000 psi	150 mm 5.90 inch	1.95 kg/mt 1.31 lb/ft	Standard
TSER520	31	31.8 mm 1 1/4 “	45.5 mm 1.79 inch	350 bar 5000 psi	1400 bar 20000 psi	210 mm 8.26 inch	2.44 kg/mt 1.64 lb/ft	Standard
TSER524	38	38.1 mm 1 1/2 “	55.0 mm 2.17 inch	350 bar 5000 psi	1400 bar 20000 psi	255 mm 10.03 inch	3.66 kg/mt 2.46 lb/ft	Standard
