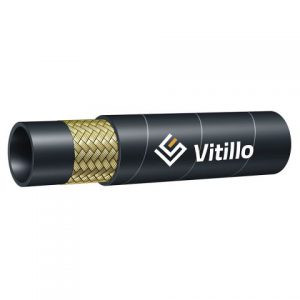

VULCANAIR

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Cover Type
TH1SC04VA	6	6.4 mm 1/4 “	12.3 mm 0.48 inch	16 bar 232 psi	64 bar 928 psi	45 mm 1.77 inch	Standard
TH1SC06VA	10	9.5 mm 3/8 “	15.5 mm 0.61 inch	16 bar 232 psi	64 bar 928 psi	75 mm 2.95 inch	Standard
TH1SC08VA	12	12.8 mm 1/2 “	19.0 mm 0.75 inch	16 bar 232 psi	64 bar 928 psi	90 mm 3.54 inch	Standard
TH1SC10VA	16	16.0 mm 5/8 “	22.6 mm 0.89 inch	16 bar 232 psi	64 bar 928 psi	115 mm 4.53 inch	Standard
TH1SC12VA	19	19.0 mm 3/4 “	25.8 mm 1.01 inch	16 bar 232 psi	64 bar 928 psi	140 mm 5.51 inch	Standard
TH1SC16VA	25	25.4 mm 1 “	33.4 mm 1.32 inch	16 bar 232 psi	64 bar 928 psi	200 mm 7.87 inch	Standard
TH1SC20VA	31	31.8 mm 1 1/4 “	40.9 mm 1.61 inch	16 bar 232 psi	64 bar 928 psi	260 mm 10.20 inch	Standard
TH1SC24VA	38	38.1 mm 1 1/2 “	47.5 mm 1.85 inch	16 bar 232 psi	64 bar 928 psi	340 mm 13.30 inch	Standard
TH1SC32VA	51	50.8 mm 2 “	60.5 mm 2.38 inch	16 bar 232 psi	64 bar 928 psi	400 mm 15.70 inch	Standard
