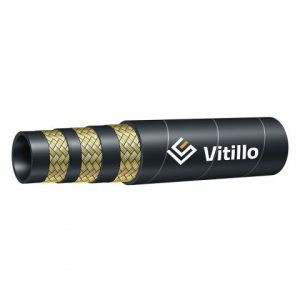

ICEBERG 3

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TH3SN04ICE	6	6.4 mm 1/4 “	16.2 mm 0.64 inch	525 bar 7650 psi	2100 bar 30600 psi	100 mm 3.94 inch	0.48 kg/mt 0.32 lb/ft	Standard
TH3SN06ICE	10	9.5 mm 3/8 “	21.3 mm 0.84 inch	500 bar 7250 psi	2000 bar 29000 psi	120 mm 4.72 inch	0.80 kg/mt 0.54 lb/ft	Standard
TH3SN08ICE	12	12.8 mm 1/2 “	23.9 mm 0.94 inch	470 bar 6850 psi	1880 bar 27400 psi	160 mm 6.30 inch	0.91 kg/mt 0.61 lb/ft	Standard
TH3SN10ICE	16	16.0 mm 5/8 “	26.8 mm 1.06 inch	410 bar 6000 psi	1640 bar 24000 psi	220 mm 8.66 inch	1.04 kg/mt 0.70 lb/ft	Standard
TH3SN12ICE	19	19.0 mm 3/4 “	31.5 mm 1.24 inch	380 bar 5500 psi	1520 bar 22000 psi	260 mm 10.24 inch	1.40 kg/mt 0.94 lb/ft	Standard
TH3SN16ICE	25	25.4 mm 1 “	38.8 mm 1.53 inch	330 bar 4800 psi	1320 bar 19200 psi	310 mm 12.20 inch	1.90 kg/mt 1.28 lb/ft	Standard

SAŅEMT PIEDĀVĀJUMU Vitillo Iceberg 3
