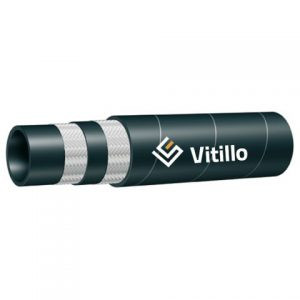

TEKNO 3TE

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TH3TE03	5	4.8 mm 3/16 “	12.6 mm 0.50 inch	160 bar 2320 psi	640 bar 9280 psi	40 mm 1.57 inch	0.14 kg/mt 0.09 lb/ft	Standard
TH3TE04	6	6.4 mm 1/4 “	14.4 mm 0.57 inch	145 bar 2103 psi	580 bar 8410 psi	45 mm 1.77 inch	0.17 kg/mt 0.11 lb/ft	Standard
TH3TE05	8	7.9 mm 5/16 “	16.9 mm 0.67 inch	130 bar 1885 psi	520 bar 7540 psi	55 mm 2.16 inch	0.22 kg/mt 0.14 lb/ft	Standard
TH3TE06	10	9.5 mm 3/8 “	18.5 mm 0.73 inch	110 bar 1595 psi	440 bar 6380 psi	70 mm 2.75 inch	0.25 kg/mt 0.16 lb/ft	Standard
TH3TE08	12	12.8 mm 1/2 “	21.7 mm 0.85 inch	93 bar 1349 psi	372 bar 5394 psi	85 mm 3.34 inch	0.31 kg/mt 0.20 lb/ft	Standard
TH3TE10	16	16.0 mm 5/8 “	25.9 mm 1.02 inch	80 bar 1160 psi	320 bar 4640 psi	105 mm 4.13 inch	0.41 kg/mt 0.28 lb/ft	Standard
TH3TE12	19	19.0 mm 3/4 “	29.0 mm 1.14 inch	70 bar 1015 psi	280 bar 4060 psi	130 mm 5.11 inch	0.47 kg/mt 0.31 lb/ft	Standard
TH3TE16	25	25.4 mm 1 “	35.9 mm 1.41 inch	55 bar 798 psi	220 bar 3190 psi	150 mm 5.90 inch	0.63 kg/mt 0.42 lb/ft	Standard
TH3TE20	31	31.8 mm 1 1/4 “	42.3 mm 1.66 inch	45 bar 653 psi	180 bar 2610 psi	190 mm 7.47 inch	0.76 kg/mt 0.51 lb/ft	Standard
