Directional Control Valve - Series D3W

Brand : Parker

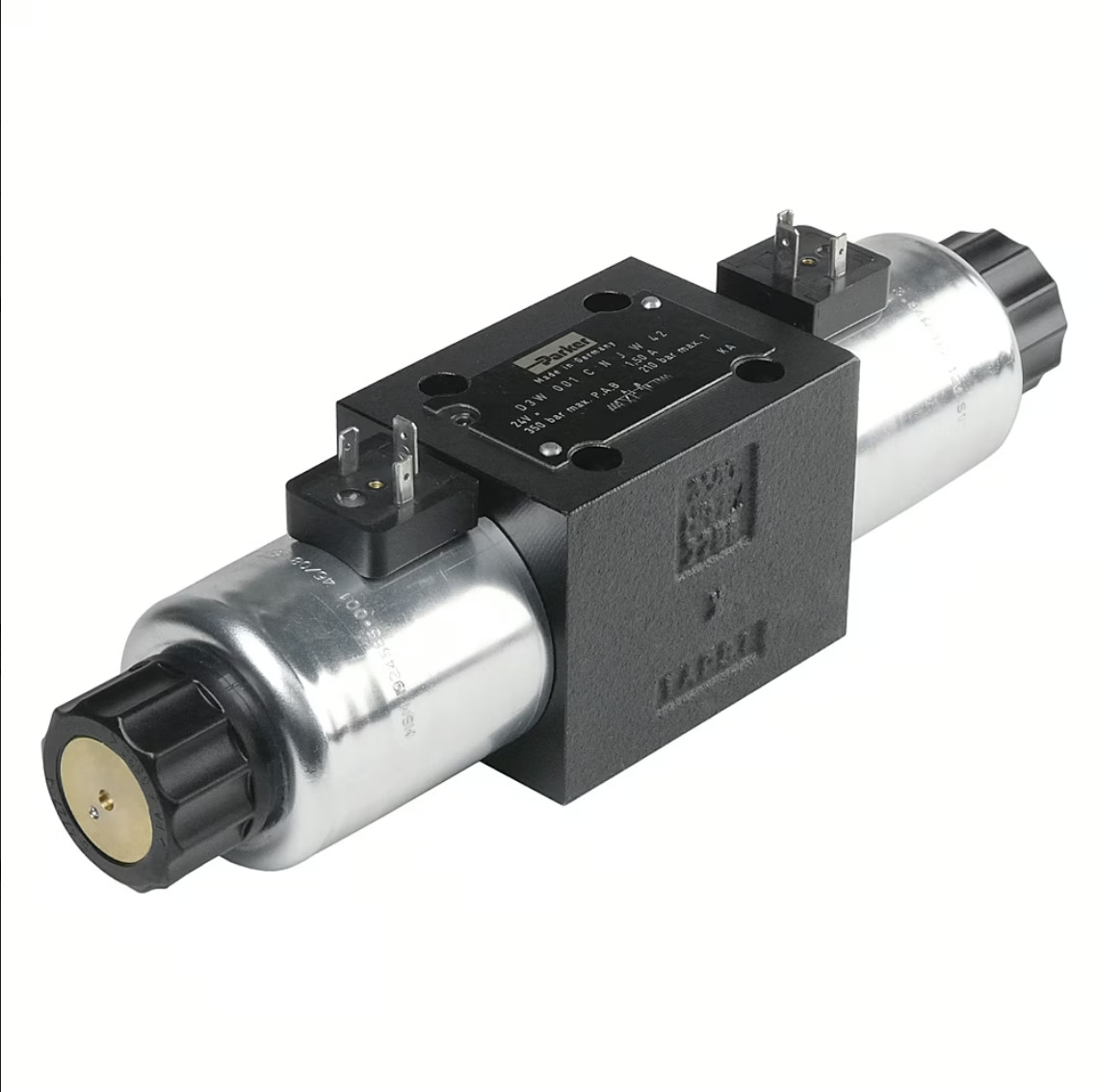

Vitillo Hydraulic Valves Directional Control Valve - Series D3W

The NG10 direct operated directional control valve series D3W provides high functional limits up to 150 l/min in combination with a low, energy saving pressure drop.

Mounting type:subplate mountingOperating type:Direct
Actuation type:solenoidProduct series:Directional control valve
Weight:Depending on size, 4.8-6.3kgMaximum flow rate:Depending on spool, 60-150 L/min
Maximum operating pressure:350 barMaximum operating temperature:60 C
Minimum operating temperature:Depending on seal type; -20, -25 CSeal material:NBR, FPM
For fluid type:Hydraulic oil, Water glycoilFunction:Depending on the configuration, 2-way, 3-way
Body material:Cast iron
