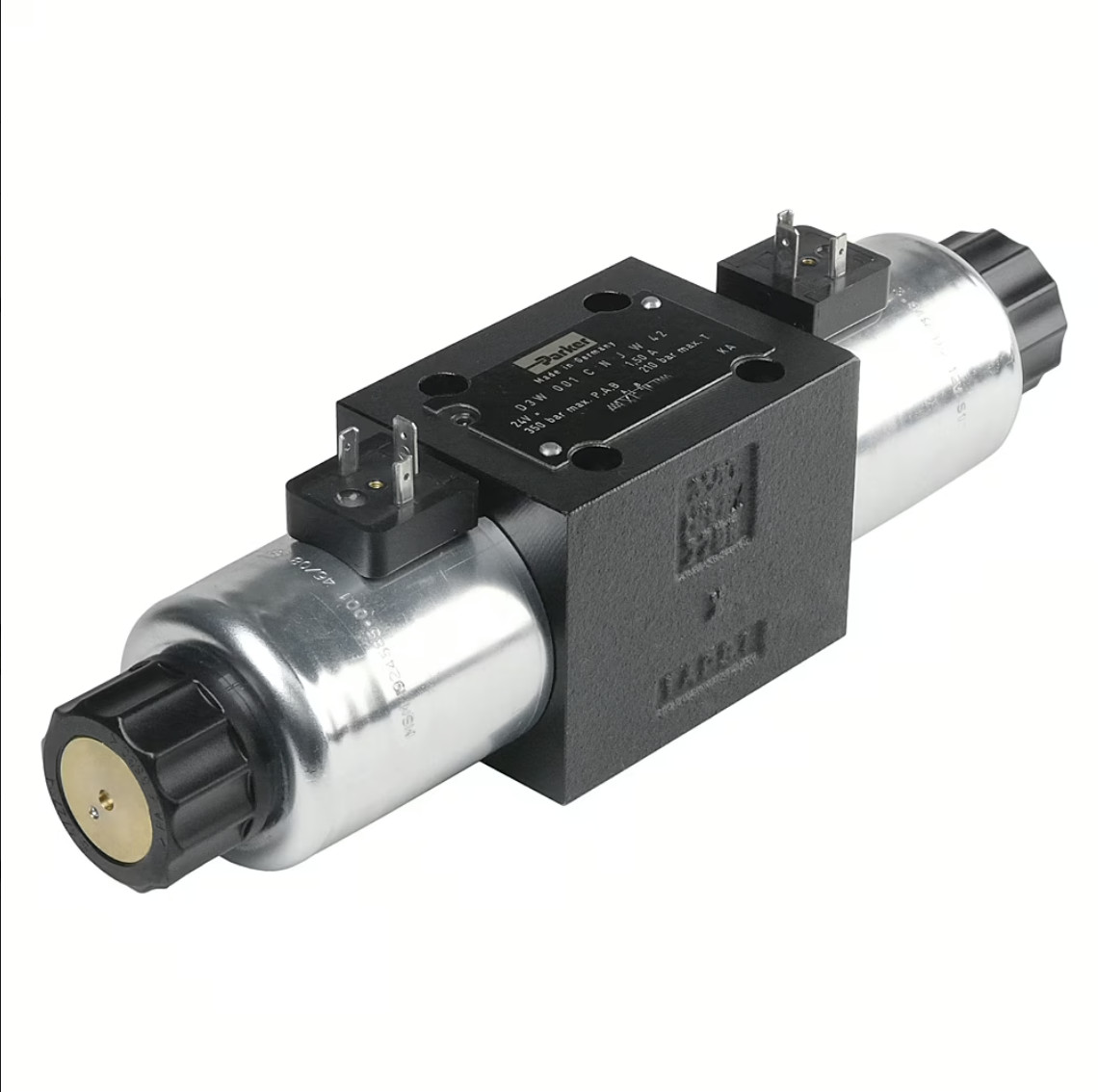

The NG10 direct operated directional control valve series D3W provides high functional limits up to 150 l/min in combination with a low, energy saving pressure drop.
| Mounting type: | subplate mounting | Operating type: | Direct |
| Actuation type: | solenoid | Product series: | Directional control valve |
| Weight: | Depending on size, 4.8-6.3kg | Maximum flow rate: | Depending on spool, 60-150 L/min |
| Maximum operating pressure: | 350 bar | Maximum operating temperature: | 60 C |
| Minimum operating temperature: | Depending on seal type; -20, -25 C | Seal material: | NBR, FPM |
| For fluid type: | Hydraulic oil, Water glycoil | Function: | Depending on the configuration, 2-way, 3-way |
| Body material: | Cast iron |
