Tee Rotary fitting with bulkhead nut. (TME..LSMOM..P)

Brand : Vitillo

Vitillo Din Fittings Tee Rotary fitting with bulkhead nut. (TME..LSMOM..P)

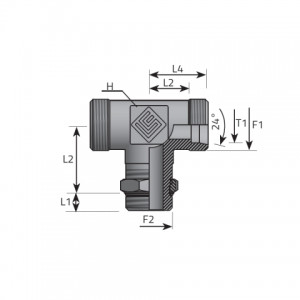

Code F1 mm F1 Pitch mm F2 mm F2 Pitch mm H mm L1 mm L2 mm L3 mm L4 mm T1 mm Pressure Series
TME06LMOM10P.1 M 12.0 X 1.50 M 10.0 X 1.00 14 8.50 14.00 19.00 21.00 6 315 bar
4568 psi
L
TME06SMOM12P.1 M 14.0 X 1.50 M 12.0 X 1.50 14 11.00 15.50 22.00 22.50 6 400 bar
5801 psi
S
TME08LMOM12P.1 M 14.0 X 1.50 M 12.0 X 1.50 14 11.00 16.00 21.00 23.00 8 315 bar
4568 psi
L
TME08SMOM14P.1 M 16.0 X 1.50 M 14.0 X 1.50 14 11.00 18.00 25.00 25.00 8 400 bar
5801 psi
S
TME10LMOM14P.1 M 16.0 X 1.50 M 14.0 X 1.50 14 11.00 17.00 24.00 24.00 10 315 bar
4568 psi
L
TME10SMOM16P.1 M 18.0 X 1.50 M 16.0 X 1.50 19 12.50 18.00 25.50 25.50 10 400 bar
5801 psi
S
TME12LMOM16P.1 M 18.0 X 1.50 M 16.0 X 1.50 19 11.50 19.00 24.50 26.00 12 250 bar
3626 psi
L
TME12SMOM18P.1 M 20.0 X 1.50 M 18.0 X 1.50 19 14.00 22.00 29.00 29.50 12 400 bar
5801 psi
S
TME15LMOM18P.1 M 22.0 X 1.50 M 18.0 X 1.50 22 12.50 21.00 28.50 28.00 15 250 bar
3626 psi
L
TME16SMOM22P.1 M 24.0 X 1.50 M 22.0 X 1.50 27 14.50 25.00 35.50 33.00 16 400 bar
5801 psi
S
TME18LMOM22P.1 M 26.0 X 1.50 M 22.0 X 1.50 27 12.50 24.00 32.50 31.50 18 250 bar
3626 psi
L
TME20SMOM27P.1 M 30.0 X 2.00 M 27.0 X 2.00 27 16.00 28.00 37.50 38.50 20 400 bar
5801 psi
S
TME22LMOM27P.1 M 30.0 X 2.00 M 27.0 X 2.00 27 15.50 28.00 34.00 35.50 22 160 bar
2320 psi
L
TME25SMOM33P.1 M 36.0 X 2.00 M 33.0 X 2.00 33 16.00 30.50 41.00 42.50 25 315 bar
4568 psi
S
TME28LMOM33P.1 M 36.0 X 2.00 M 33.0 X 2.00 33 15.50 31.00 38.50 38.50 28 160 bar
2320 psi
L
TME30SMOM42P.1 M 42.0 X 2.00 M 42.0 X 2.00 41 18.00 36.00 50.00 49.50 30 250 bar
3626 psi
S
TME35LMOM42P.1 M 45.0 X 2.00 M 42.0 X 2.00 41 15.50 38.00 46.50 48.50 35 160 bar
2320 psi
L
TME38SMOM48P.1 M 52.0 X 2.00 M 48.0 X 2.00 48 20.00 34.00 49.00 50.00 38 200 bar
2901 psi
S
TME42LMOM48P.1 M 52.0 X 2.00 M 48.0 X 2.00 48 17.00 38.00 48.00 49.00 42 160 bar
2320 psi
L
