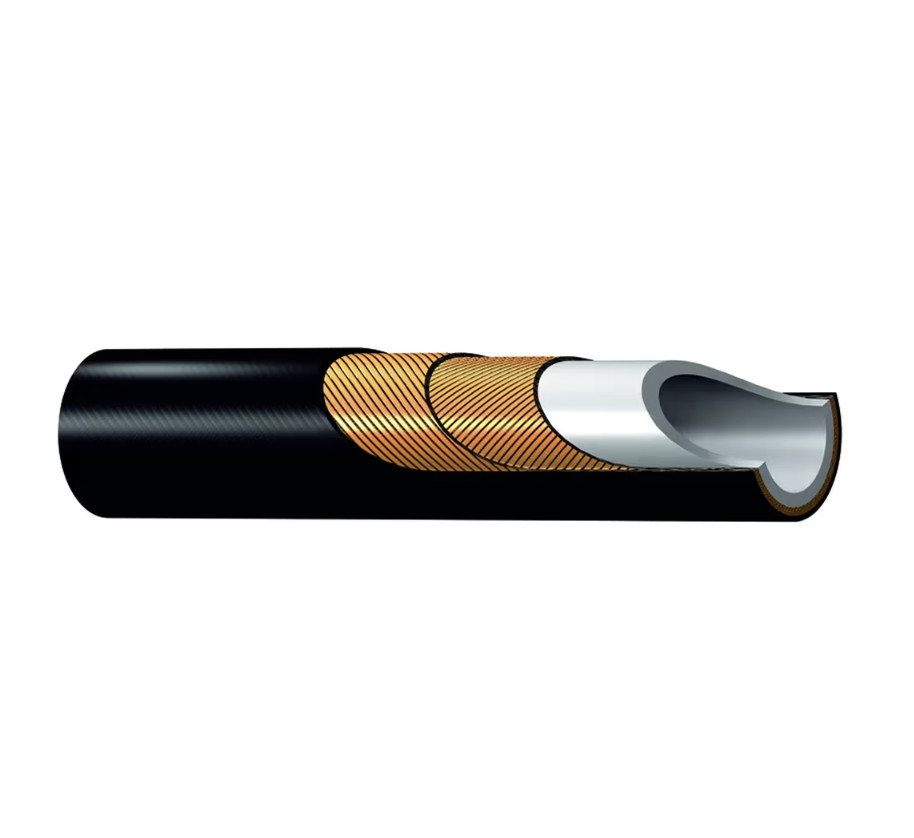

Parker 2240N Polyflex Hoses for the Oil & Gas industry are designed for safety, versatility and efficiency, matching the tough requirements and expectations of the market place. Easy winching from drums reduces deployment or replacement times significantly. Long lengths allow operation in significant water depth and the durability of the hose assures maximized service life under extreme conditions.
Markets:
• Oil & Gas
• Industrial
Features/Benefits:
• Low dimensional change under pressure and results in excellent response times
• Smooth bore for low pressure drop
• Offshore saftey factor standard
• Design factore: 4:1
• Meets or exceeds performance requirements of ISO 13628-5
Applications:
• Small OD
• Low volumetric expansion hose
• Long length subsea umbilical hose
• For working pressure up to 43 MPa (6.250 psi)
Technical Specifications:
• Core tube : Methanol washed PA11
• Pressure reinforcement : High strength wire
• Cover : PA12
• Colour: Black
• Temperature Range: -40°C up to +100°C, max. 70°C for water or methanol based fluids.
| Industry: | General Industrial, Oil & Gas |
| Hose Inner Tube Material: | Polyamide 11 Methanol Washed |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -40 °F |
| Maximum Operating Pressure: | 43 MPa, 430 bar, 6250 psi |
| Product Type: | High Pressure Hose, Hydraulic Hose, Transfer Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide 12 |
| Materials of Construction: | Thermoplastic |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 2.756 inch, 70 mm |
| Media: | Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | ISO 13628-5 |
| Weight: | 0.17 kg/m, 0.11 lb/ft |
| Inside Diameter: | 1/4 inch, 6.5 mm |
| Compatible Fitting: | RX Series |
| Application: | Subsea BOP |
| Hose Reinforcement Material: | High Strength Wire |
| Outside Diameter: | 0.457 inch, 11.6 mm |
| Products | Maximum Working Pressure (MPa) |
|---|---|
| 2240N-04V91 | 43 |
