Parker Polyflex 2022N Hoses for the Oil & Gas industry are designed for safety, versatility and efficiency, matching the tough requirements and expectations of the market place. Easy winching from drums reduces deployment or replacement times significantly. Long lengths allow operation in significant water depth and the durability of the hose assures maximized service life under extreme conditions.
Markets:
• Oil & Gas
• Industrial
Feature/Benefits:
• Strength of Aramid reinforcment with low weight, flexibility with excellent pressure capabilities
• Smooth bore for improved flow rate and low pressure drop
• ISO13628-5 "Specification fro Subsea Production Control Umbilicals" Section 7.9 hose construction
Applications:
• Long length hose and hose umbilicals requiring lightweight construction.
• High pressure hydraulics, pneumatics and lubricating oils, high pressure tools, jacks, test apparatus, oilfi eld pressure control devices and offshore oil applications.
• For working pressure up to 34.5 MPa (5.000 psi)

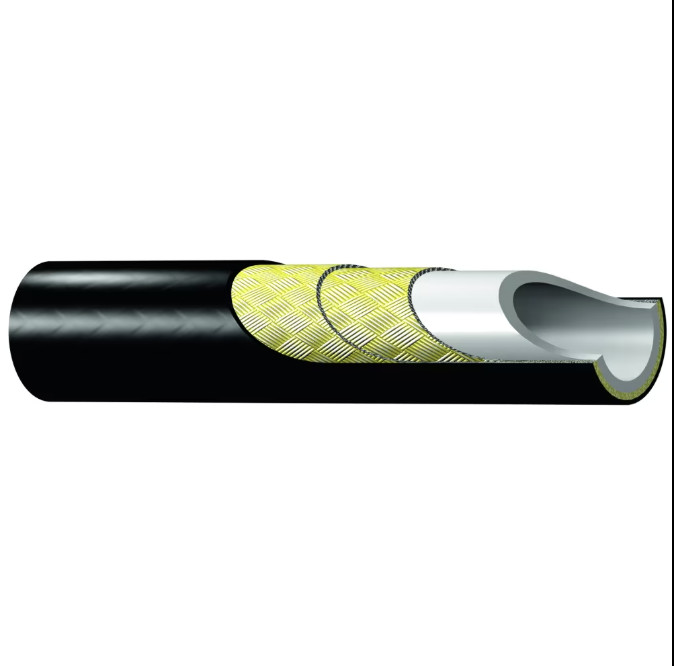

Construction:
• Core tube : Polyamide 11, methanol washed
• Pressure reinforcement : High tensile aramid fibre braids
• Cover : Polyurethane, pin-pricked on request
• Colour: Black
• Temperature Range: -40°C up to +55°C
| Weight: | 0.05 to 0.22 lb/ft, 0.08 to 0.33 kg/m |
| Industry: | General Industrial, Oil & Gas |
| Hose Inner Tube Material: | Polyamide (PA) |
| Brand: | Parker |
| Maximum Operating Temperature: | 131 °F, 55 °C |
| Minimum Operating Temperature: | -40 °F |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyurethane |
| Materials of Construction: | Thermoplastic |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | High Pressure Aramid Hose |
| Minimum Bend Radius: | 2 to 4 inch, 51 to 102 mm |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | API 17E, API 17En, ISO 13628-5 |
| Compatible Fitting: | 8X Series, LX Series, AH Series, 3X Series |
| Inside Diameter: | 1/4 to 1/2 inch, 6.3 to 12.9 mm |
| Maximum Operating Pressure: | 345 to 690 bar, 34.5 to 69.0 MPa, 5000 to 10000 psi |
| Application: | Hydraulic Tools |
| Hose Reinforcement Material: | Braid of High Tensile Aramid Fiber |
| Outside Diameter: | 0.543 inch, 12.9 to 23.2 mm |
| Products | Maximum Working Pressure (MPa) | Hose O.D. (mm) |
|---|---|---|
| 2022N-04V91-5K | 34.5 | 12.7 |
| 2022N-04V91-10K | 69 | 13.8 |
| 2022N-04V91-10K-13MM | 69 | 12.9 |
| 2022N-06V91-5K | 34.5 | 16.1 |
| 2022N-06V91-10K | 69 | 19 |
| 2022N-08V91-5K | 34.5 | 20.8 |
| 2022N-08V91-10K | 69 | 23.1 |
| 2022N-04V10 | 69 | 13.8 |
