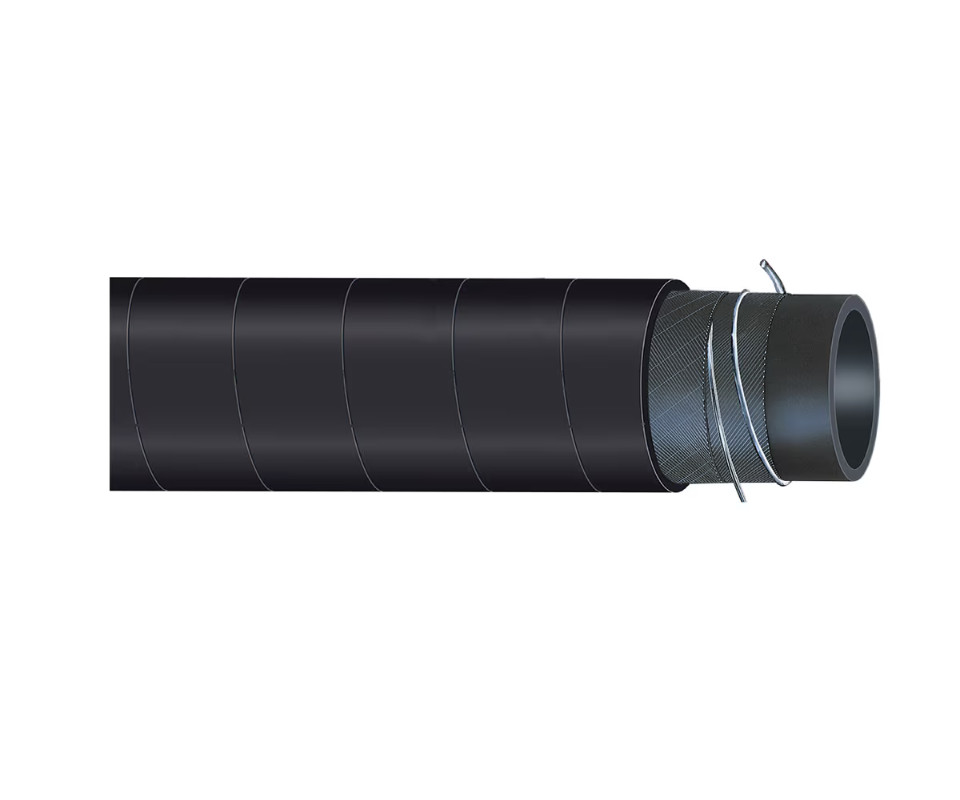

Acid & Chemicals Transfer Hose - Poliax F EN 12115

Brand : Parker Hannifin

Parker Hannifin M6d43359ba1ca4b8162a5e04cea5a764d3 Acid & Chemicals Transfer Hose - Poliax F EN 12115

Poliax F EN 12115 is a hose manufactured with high quality elastomers providing excellent chemical and mechanical properties resulting ideal for the suction and delivery of a wide range of highly aggressive chemicals and solvents at low and high temperatures. Additionally, it is compliant to food, pharmaceutical and sanitary materials in accordance to FDA and EU specs extending the possibility of use in field. But what makes this hose unique and different from the others you can find on the market place is the full electrical conductivity (type Ω/T according to EN 12115, R<1MΩ and R<1GΩ through the wall) a very appreciated feature in the industry. Parker has designed Poliax F with the best  materials and technology, but we recommend you always to follow our safety guide and to refer to our chemical guide to determine compatibility with specific fluids. Because we do care about you and your business.

Markets
• Processing
• Transportation
• Industrial

Features/Benefits
• Full conductive properties make it admissible in ATEX areas
• Flame resistant cover suitable for hazardous fluid transfer
• Design Factor 4:1 enhances safety for operators and equipment

Applications
• In-Plant
• Storage and tank transfer
• Acid, chemicals, solvents
• Vacuum



Application:Acid, Chemicals
Weight:0.54 to 3.43 kg/m, 0.363 to 2.30 lb/ft
Industry:Industrial Manufacturing Equipment, Industrial & Chemicals Processing, Life Sciences & Healthcare
Hose Inner Tube Material:Polytetrafluoroethylene (PTFE), Phtalates Free, Smooth (polytetrafluoroethylene)
Brand:Parker
Maximum Operating Temperature:150 °C, 302 °F
Minimum Operating Temperature:-40 °C, -40 °F
Maximum Operating Pressure:1.6 MPa, 16 bar, 232 psi
Product Type:Chemical Hose, Suction Hose, Transfer Hose
Design Factor:4:1
Technology:Fluid & Gas Handling
Materials of Construction:Rubber
Cover Material:Ethylene Propylene Diene Monomer (EPDM)
Vacuum Pressure Rating:675.06 mm-Hg, 0.9 bar, 26.58 inch-Hg
Division:Polymer Hose Division Europe
Product Style:Suction and Delivery
Minimum Bend Radius:3.543 to 20.079 inch, 90 to 510 mm
Media:Chemicals - Check your fluid compatibility with our catalogue chart.
Specifications Met:EN 12115.0, FDA, TRbF 131 part 2 par 5.5 (flame resistance), USP XXXII, Class VI
Compatible Fitting:n/a
Inside Diameter:0.512 to 2.953 inch, 13 to 75 mm
Hose Reinforcement Material:Multiple Plies with Galvanized Wire Helix and Copper Wires High Temperature Resistant
Outside Diameter:0.984 to 3.583 inch, 25 to 91 mm



ProductsHose I.D. (mm)Hose I.D. (inch)
IH36811541/0130.512
IH36811542/0193/4
IH36811543/0250.984
IH36811544/0321-1/4
IH36811545/0381-1/2
IH36811546/0502
IH36811547/063.52-1/2
IH36811548/0752.953
