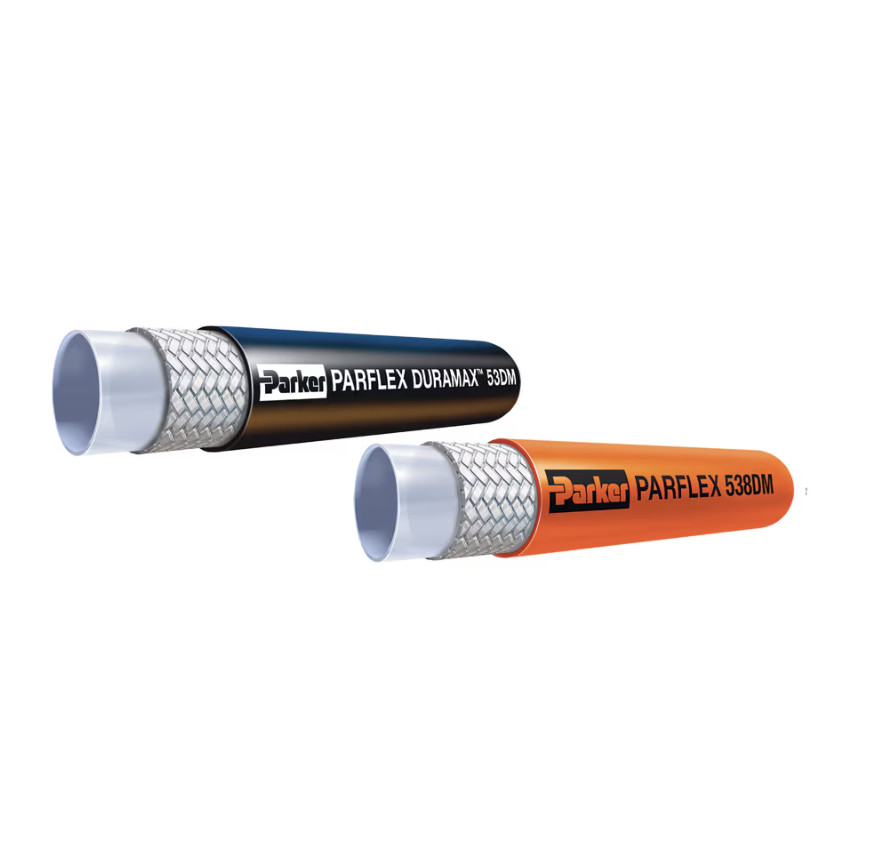

Whether you need a hydraulic hose replacement or are building new equipment, Parflex low-temperature hoses offer optimum hose flexibility in operating environments with low ambient temperatures. Designed to withstand and perform successfully in low temperatures, these hoses are ideal for applications that involve hydraulic forklifts in cold or refrigerated areas, aerial lift construction trucks, agriculture equipment in cold climates, or material handling equipment in commercial freezers. Parflex low temperature hoses also feature a 10%-30% smaller O.D. than rubber and are up to 70% lighter. Similar to 3TR18/30CT hose but with a lower operating temperature (-70°F).
Markets:
• Material Handling
• Construction
• Agriculture
Features/Benefits:
• Matte cover for low coefficient of friction
• Low length change under pressure
• Superior flexibility in cold temperature applications
• Better bend radius than SAE J517 and 100R18
• 3000 psi constant pressure
Applications:
• Excellent over-the-sheave in lift truck applications
• Cold storage or refrigerated areas<
• Construction and agriculture equipment in cold climates
Certifications/Compliance:
• Meets/Exceeds SAE 100R17 or SAE 100R18 (dependent on part number)
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Design Factor: | 4 |
| Cover Color: | Black, Orange |
| Media: | Air, Lubricants (Oils), Petroleum Hydraulic Fluids, Water |
| Maximum Operating Pressure: | 3000 psi, 20.7 MPa, 207 bar |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Minimum Operating Temperature: | -70 °F, -57 °C |
| Specifications Met: | SAE 100R18, SAE J517 (for less than 50 micro-amps leakage under 75,000 volts per ft.), SAE J517 and 100R18 |
| Compatible Fitting: | 56 Series, CG Series, CY Series |
| Weight: | 0.05 to 0.40 lb/ft, 0.30 to 0.60 kg/m |
| Inside Diameter: | 1/8 to 3/4 inch, 3.2 to 19 mm |
| Application: | Cold Applications, Construction Equipment, Hydraulics, Industrial Machinery, Over-the-Sheave |
| Hose Inner Tube Material: | Copolyester, Polyamide (PA) |
| Cover Material: | Copolyester |
| Minimum Bend Radius: | 1/2 to 6-1/2 inch, 13 to 165 mm |
| Size: | -2 to -12 |
| Hose Reinforcement Material: | Fiber |
| Outside Diameter: | 0.330 inch, 0.490 inch, 0.660 inch, 0.840 inch, 1.030 inch, 1.130 inch, 8.2 to 28.7 mm |
| Products | Hose I.D. (inch) | Hose Style |
|---|---|---|
| 53DM-4 | 1/4 | Natural, Single |
| 53DM-6 | 3/8 | Natural, Single |
| 53DM-8 | 1/2 | Natural, Single |
| 53DM-10 | 5/8 | Natural, Single |
| 53DM-12 | 3/4 | Natural, Single |
| 538DM-6 | 3/8 | Non-Conductive, Single |
| 53DM-6-50 | 3/8 | Natural, Single - one piece |
| 53DM-6-6 | 3/8 | Natural, Twin Line |
| 53DM-8-50 | 1/2 | Natural, Single - one piece |
| 53DM-2 | 1/8 | Natural, Single |
| 538DM-10 | 5/8 | Obsolete, Non Conductive |
| 538DM-3 | 3/16 | Obsolete, Non Conductive |
| 538DM-4 | 1/4 | Obsolete, Non Conductive |
| 538DM-5 | 5/16 | Obsolete, Non Conductive |
| 538DM-8 | 1/2 | Obsolete, Non Conductive |
| 53DM-3 | 3/16 | Obsolete, Natural, Single |
| 53DM-5 | 5/16 | Obsolete, Natural, Single |
