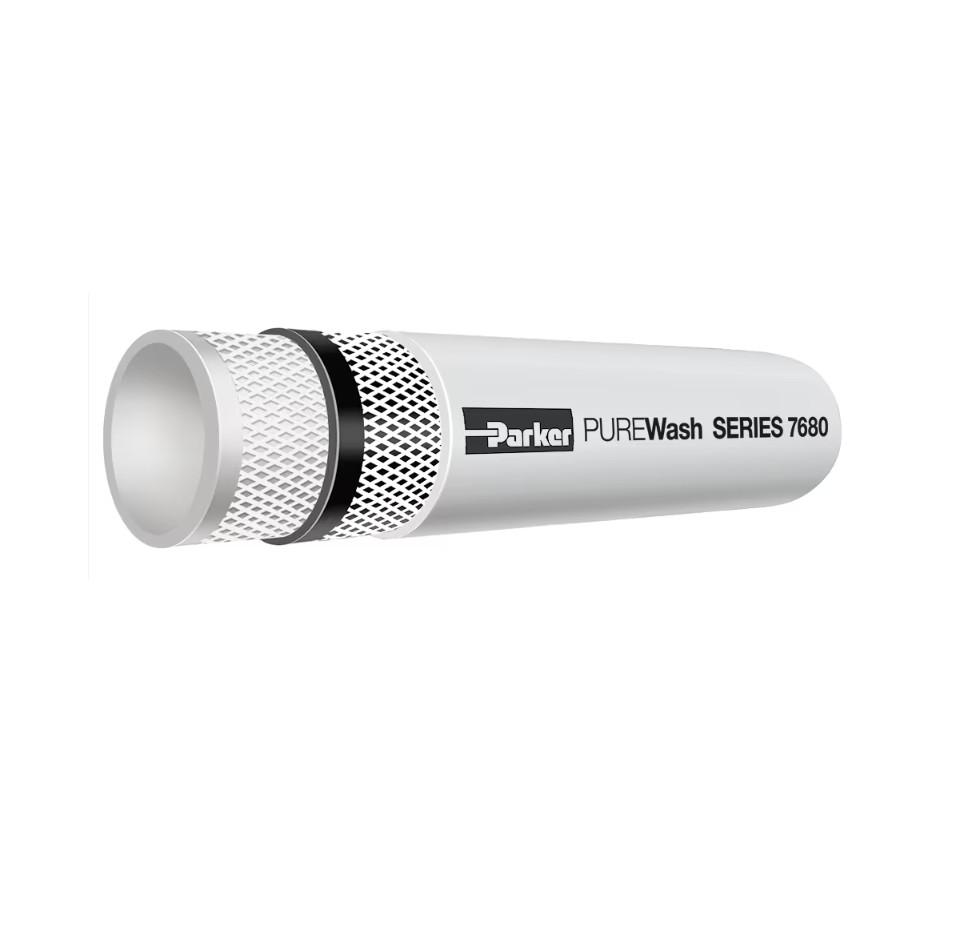

As part of Parker’s PURE Food and Beverage Hose line, PUREWash Series 7680 washdown hose can be used in virtually every type of food and beverage processing plant. Sanitation of equipment and work areas is critical in packing houses, hot processing plants, breweries, dairies, wineries, and general industrial applications. Cleaning and purification practices require a commitment to preventative maintenance. This in turn extends the life of equipment and productivity.
Markets:
• Food & Beverage
Features/Benefits:
• FDA compliant tube (not to be used in food contact/transfer)
• Enhanced printed layline
• Non-marking covers
• Additional blue cover in product offering for a cleaner look
• Compatible with Parkrimp crimpers or variable crimpers. Please refer to Crimpsource for specifications.
Applications:
• Food and beverage processing plants
• Equipment sanitation
• Preventative maintenance
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) FDA Compliant, White FDA Compliant |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Cover Color: | Blue, White |
| Specifications Met: | FDA (not to be used in food contact/transfer) |
| Weight: | 0.11 to 0.24 kg/m, 0.25 to 0.52 lb/ft |
| Inside Diameter: | 0.50 to 1 inch, 12.7 to 25.4 mm |
| Compatible Fitting: | HY Series |
| Application: | Equipment Sanitation, Food & Beverage Processing, Preventative Maintenance |
| Hose Reinforcement Material: | 4 Plies of Textile |
| Minimum Bend Radius: | 5 to 8 inch, 127 to 203 mm |
| Outside Diameter: | 0.875 to 1.438 inch, 22.2 to 36.5 mm |
| Maximum Operating Pressure: | 300 psi, 20.7 bar |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Products | Hose I.D. (inch) | Minimum Working Temperature (F) | Maximum Working Temperature (F) | Minimum Working Temperature (C) | Application | Maximum Working Temperature (C) | Hose O.D. (inch) | Cover Color | Hose I.D. (mm) | Hose O.D. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 7680-12-BLU-BX | 0.75 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 1.156 | Blue | 19.1 | 29.4 |
| 7680-12-BLU-RL | 0.75 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 1.156 | Blue | 19.1 | 29.4 |
| 7680-12-WHT-BX | 0.75 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 1.156 | White | 19.1 | 29.4 |
| 7680-12-WHT-RL | 0.75 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 1.156 | White | 19.1 | 29.4 |
| 7680-16-BLU-RL | 1 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 1.438 | Blue | 25.4 | 36.5 |
| 7680-16-WHT-RL | 1 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 1.438 | White | 25.4 | 36.5 |
| 7680-8-BLU-RL | 0.5 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 0.875 | Blue | 12.7 | 22.2 |
| 7680-8-WHT-RL | 0.5 | -40 | 212 | -40 | Equiment Sanitation, Preventative Maintenance | 100 | 0.875 | White | 12.7 | 22.2 |
