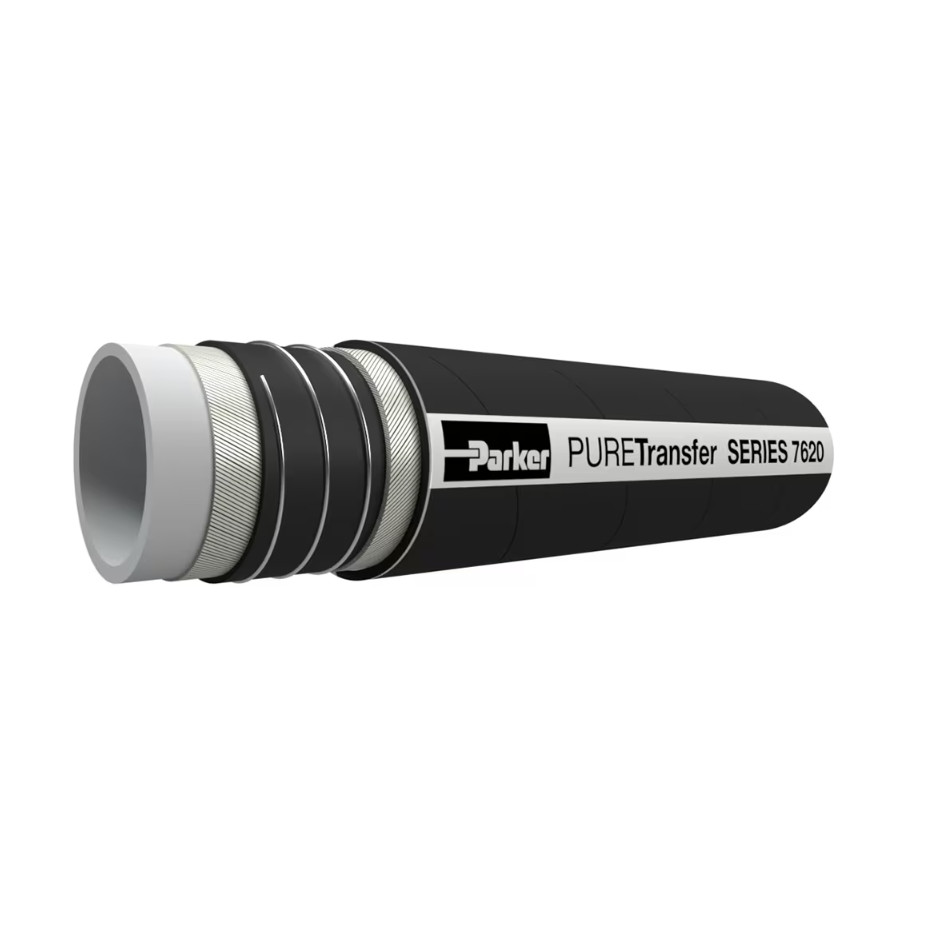

As part of Parker’s PURE Food and Beverage Hose line, PURETransfer Series 7620 is a high quality and flexible delivery and suction hose. Our color coded hose allows for simple product selection and is built to withstand harsh processing applications, where hoses are subject to multiple cycles of sanitary cleaning methods, like clean-in-place (CIP) a simplification process using aggressive cleaning agents and high temperatures to maintain sanitary conditions. Produced on stainless steel mandrels the clean innertube is made of FDA-compliant materials and applied in a seamless manner to eliminate voids or gaps where bacteria could accumulate. 7620 is designed to convey dry abrasives. The white antistatic tube material consists of premium nitrile (NBR). Parker also offers many of our food and beverage hoses in multiple cover options to fit your applications individual needs.
Markets:
•Food & Beverage
Features/Benefits:
•PURE hose is color coded for simple product selection
•FDA compliant innertube
•Smooth, high-grade vulcanized rubber cover
Applications:
•Dry abrasives
•cooking oils & fat
•dairy products
•oily sauces
| Cover Color: | Black |
| Cover Material: | Conductive |
| Cover Structure: | Cloth Finish, Smooth |
| Media: | Dry Abrasive Powders |
| Specifications Met: | BfR, DM, EX, FDA, GMP, MHLW, REACH |
| Weight: | 0.80 to 4.47 kg/m, 0.54 to 2.99 lb/ft |
| Inside Diameter: | 25 to 102 mm |
| Hose Reinforcement Material: | Synthetic Plies with Galvanized Wire Helix |
| Minimum Bend Radius: | 4.92 to 24 inch, 125 to 600 mm |
| Outside Diameter: | 37 to 118 mm |
| Vacuum Pressure Rating: | 26.5 inch-Hg, 90 kPa |
| Maximum Operating Pressure: | 90 psi, 6 bar |
| Minimum Burst Pressure: | 270 psi, 18 bar |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Temperature: | 176 °F, 80 °C |
| Application: | Food Transfer |
| Hose Inner Tube Material: | White Antistatic, Nitrile Antistatic, Phtalates Free Antistatic |
