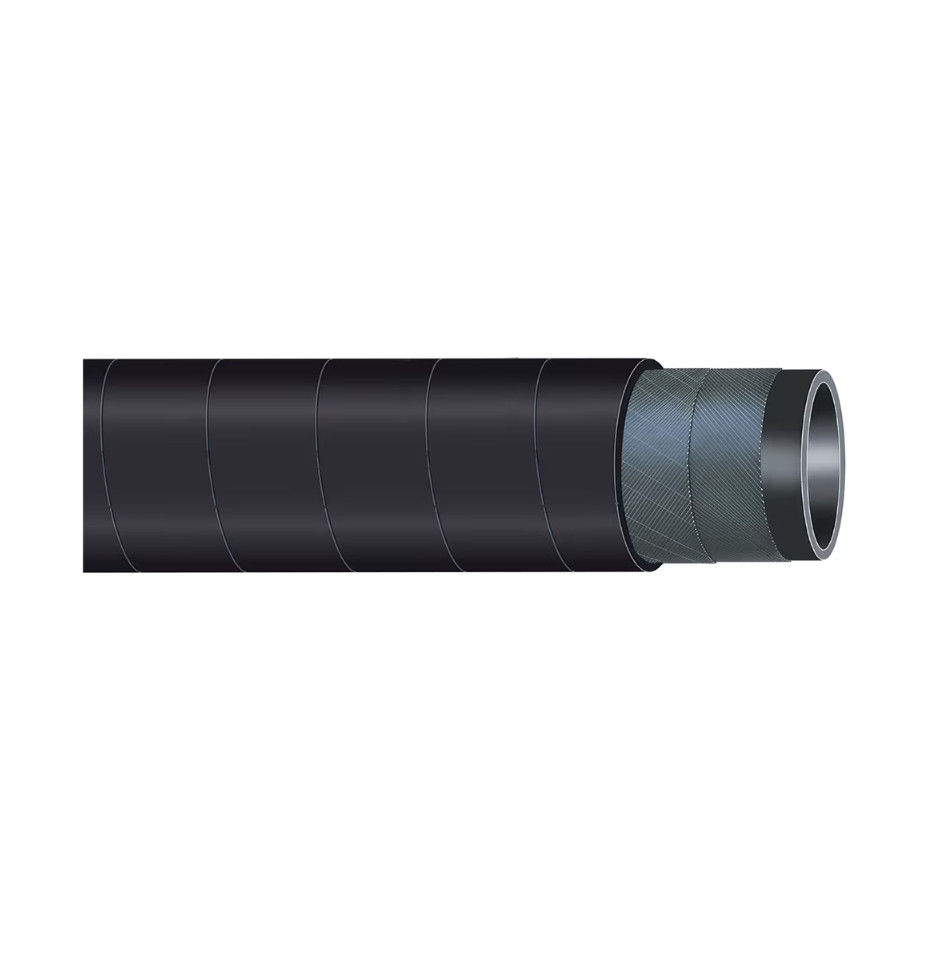

Radior DIN 6 is a hose that has been specifically developed to meet the most demanding requirements in the automotive industry and to withstand high temperature range. Thus it is a reliable solution also for off-roads and stationary engine. Fully compliant to DIN 73411 spec up to dn 25 mm while other sizes comply for tensile strength, density, hardness, laceration, swelling, aging and dry residue
Markets
• Transportation
• Mobile
• Industrial
Features/Benefits
• EPDM compounds highly resistant to environmental stress for longevity of use
• Specific reinforcement material enables a safe use under high temperatures
• Design Factor 3:1 enhances safety for operators and equipment.
Applications
•Coolant and refrigerant systems
| Weight: | 0.11 to 0.75 lb/ft, 0.17 to 1.11 kg/m |
| Industry: | General Industrial, Transportation |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 6 bar, 90 psi |
| Application: | Automotive, Boat |
| Product Type: | Transfer Hose, Coolant Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Materials of Construction: | Rubber |
| Design Factor: | 3:1 |
| Product Style: | Delivery |
| Specifications Met: | DIN 73411.0, DIN 73411 (and Parker specifications) |
| Inside Diameter: | 0.394 to 2 inch, 10 to 50 mm |
| Maximum Operating Temperature: | 125 °C with peaks up to 140°C., 257 °F with peaks up to 284°F. |
| Hose Reinforcement Material: | Synthetic Textile Fabric/Yarn |
| Minimum Bend Radius: | n/a |
| Outside Diameter: | 0.669 to 2.362 inch, 17 to 60 mm |
| Products | Hose I.D. (mm) |
|---|---|
| IH30836101/40 | 10 |
| IH30836103/40 | 13 |
| IH30836104/40 | 15 |
| IH30836105/40 | 16 |
| IH30836106/40 | 18 |
| IH30836107/40 | 20 |
| IH30836108/40 | 22 |
| IH30836109/40 | 25 |
| IH36836110/40 | 28 |
| IH36836111/40 | 30 |
| IH36836112/40 | 32 |
| IH36836113/40 | 35 |
| IH36836114/40 | 38 |
| IH36836115/40 | 40 |
| IH36836116/40 | 42 |
| IH36836117/40 | 45 |
| IH36836119/40 | 50 |
