![Monoblock valve 1-section 45L/MIN - MB/25/1](https://hidronex.lv/images/uploads/monoblock-valves/MB_25_1.jpeg)

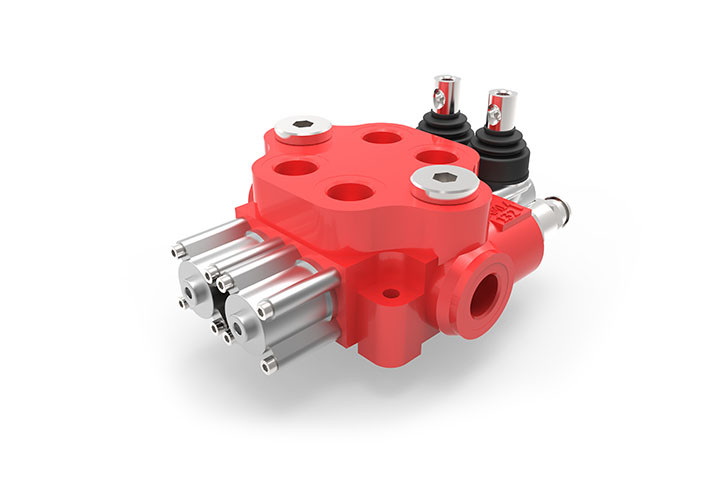

Directional control valves Enbloc, with reversible longitudinal spool- from 1 to 2 sections- provided with adjustable pressure relief valve, control lever.
Presetting for tandem connection (carry-over).
Nominal capacity: 90 litres with threads ABP1P2T2= 3/4”; T1= 1”;
Nominal capacity: 130 litres with 1” threads.
Working pressure: AMI 131 (3/4”) up to 300 bar; AMI 131 (1”)-AMI 132(3/4”)-AMI 132 (1”) up to 250 bar.
Controls: manual, mechanic, pneumatic, hydraulic, electro-hydraulics, with remote contro
