TEKNO R7 NON CONDUCTIVE

Brand : Vitillo

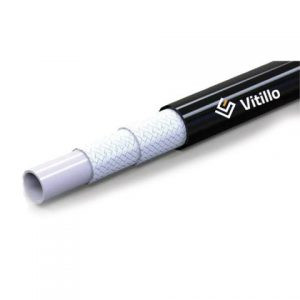

Vitillo Thermoplastic Hoses  TEKNO R7 NON CONDUCTIVE

CodeD.N.Hose sizeOutside DiameterMax Working PressureMinimum Burst PressureMinimum Bend RadiusWeightCover Type
THR703NC54.8 mm
3/16 “
10.0 mm
0.39 inch
210 bar
3045 psi
840 bar
12180 psi
30 mm
1.18 inch
0.07 kg/mt
0.05 lb/ft
Standard
THR704NC66.4 mm
1/4 “
11.8 mm
0.46 inch
200 bar
2900 psi
800 bar
11600 psi
35 mm
1.38 inch
0.09 kg/mt
0.06 lb/ft
Standard
THR705NC88.0 mm
5/16 “
14.3 mm
0.56 inch
190 bar
2755 psi
760 bar
11020 psi
45 mm
1.77 inch
0.13 kg/mt
0.09 lb/ft
Standard
THR706NC109.7 mm
3/8 “
16.0 mm
0.63 inch
175 bar
2538 psi
700 bar
10150 psi
55 mm
2.16 inch
0.16 kg/mt
0.10 lb/ft
Standard
THR708NC1213.0 mm
1/2 “
20.3 mm
0.80 inch
140 bar
2030 psi
560 bar
8120 psi
75 mm
2.95 inch
0.22 kg/mt
0.15 lb/ft
Standard
THR710NC1616.0 mm
5/8 “
23.5 mm
0.92 inch
105 bar
1523 psi
420 bar
6090 psi
120 mm
4.72 inch
0.28 kg/mt
0.19 lb/ft
Standard
THR712NC1919.2 mm
3/4 “
26.5 mm
1.04 inch
90 bar
1305 psi
360 bar
5220 psi
145 mm
5.70 inch
0.33 kg/mt
0.22 lb/ft
Standard
THR716NC2525.6 mm
1 “
33.6 mm
1.32 inch
70 bar
1015 psi
280 bar
4060 psi
200 mm
7.87 inch
0.40 kg/mt
0.27 lb/ft
Standard
