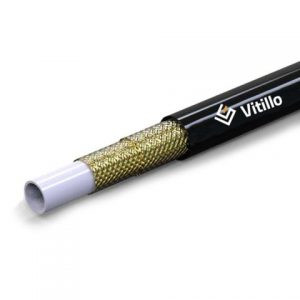

TEKNO MTH2

Brand : Vitillo


Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
THMTH204	6	6.4 mm 1/4 “	13.5 mm 0.53 inch	400 bar 5800 psi	1600 bar 23200 psi	40 mm 1.57 inch	0.29 kg/mt 0.20 lb/ft	Standard
THMTH205	8	8.0 mm 5/16 “	15.1 mm 0.59 inch	350 bar 5075 psi	1400 bar 20300 psi	50 mm 1.97 inch	0.35 kg/mt 0.23 lb/ft	Standard
THMTH206	10	9.7 mm 3/8 “	17.0 mm 0.67 inch	330 bar 4785 psi	1320 bar 19140 psi	60 mm 2.36 inch	0.42 kg/mt 0.28 lb/ft	Standard
THMTH208	12	13.0 mm 1/2 “	21.5 mm 0.85 inch	275 bar 3988 psi	1100 bar 15950 psi	75 mm 2.95 inch	0.60 kg/mt 0.40 lb/ft	Standard
THMTH210	16	16.3 mm 5/8 “	24.5 mm 0.96 inch	250 bar 3625 psi	1000 bar 14500 psi	110 mm 4.33 inch	0.66 kg/mt 0.44 lb/ft	Standard
THMTH212	19	19.2 mm 3/4 “	27.5 mm 1.08 inch	215 bar 3118 psi	860 bar 12470 psi	150 mm 5.90 inch	0.79 kg/mt 0.53 lb/ft	Standard
THMTH216	25	25.6 mm 1 “	35.0 mm 1.38 inch	165 bar 2393 psi	660 bar 9570 psi	185 mm 7.28 inch	1.05 kg/mt 0.71 lb/ft	Standard
